Intro

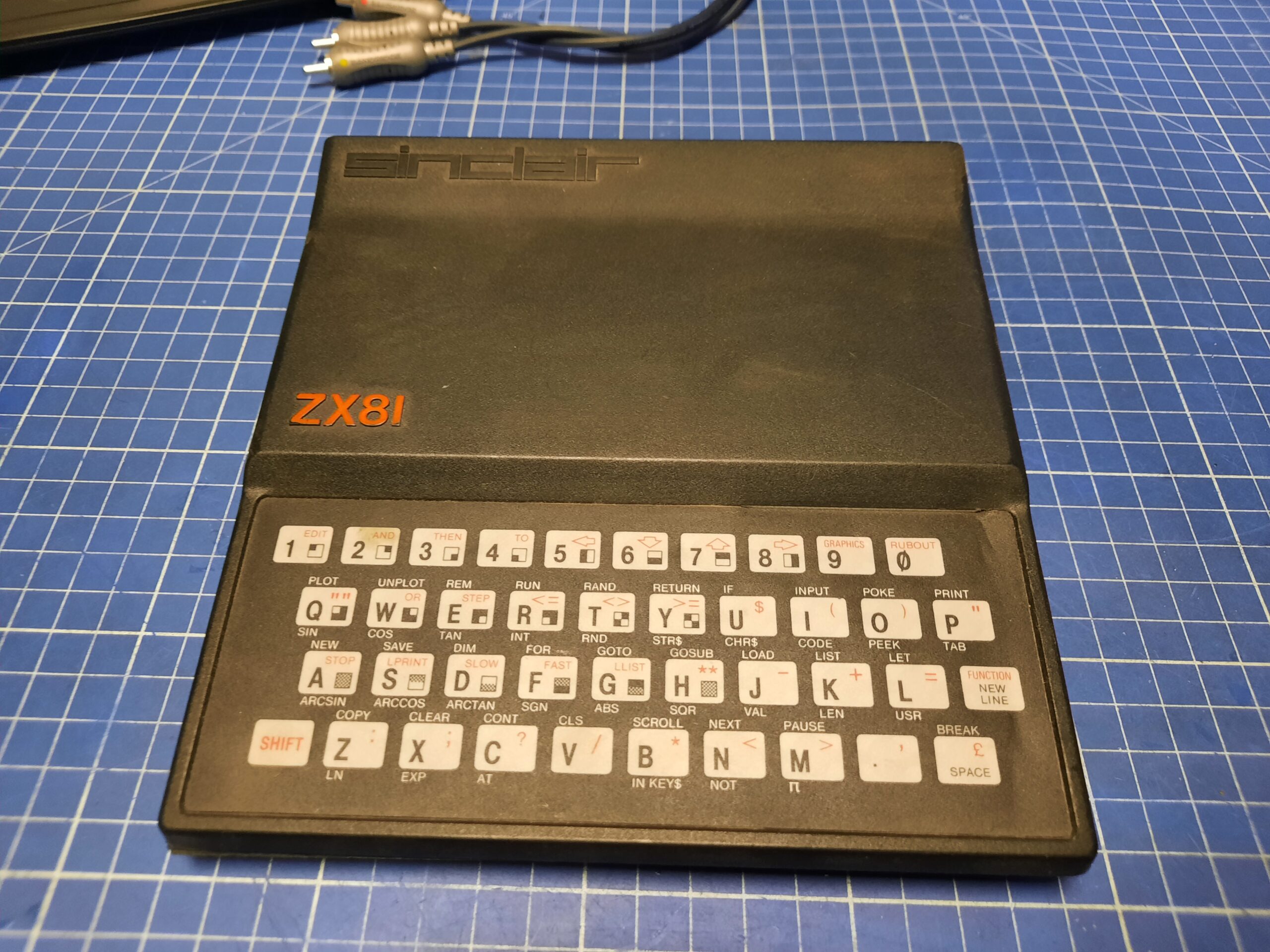

Some time ago, I described my ZX 81 mods and repairs in a blog post. Unfortunately, the keyboard stopped working. So now we have a post -> #SHORTS – ZX 81 Keyboard membrane swap
I’ve decided to swap it with a new keyboard membrane this time. This is how it was done.
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_112240-1600x1200.jpg)

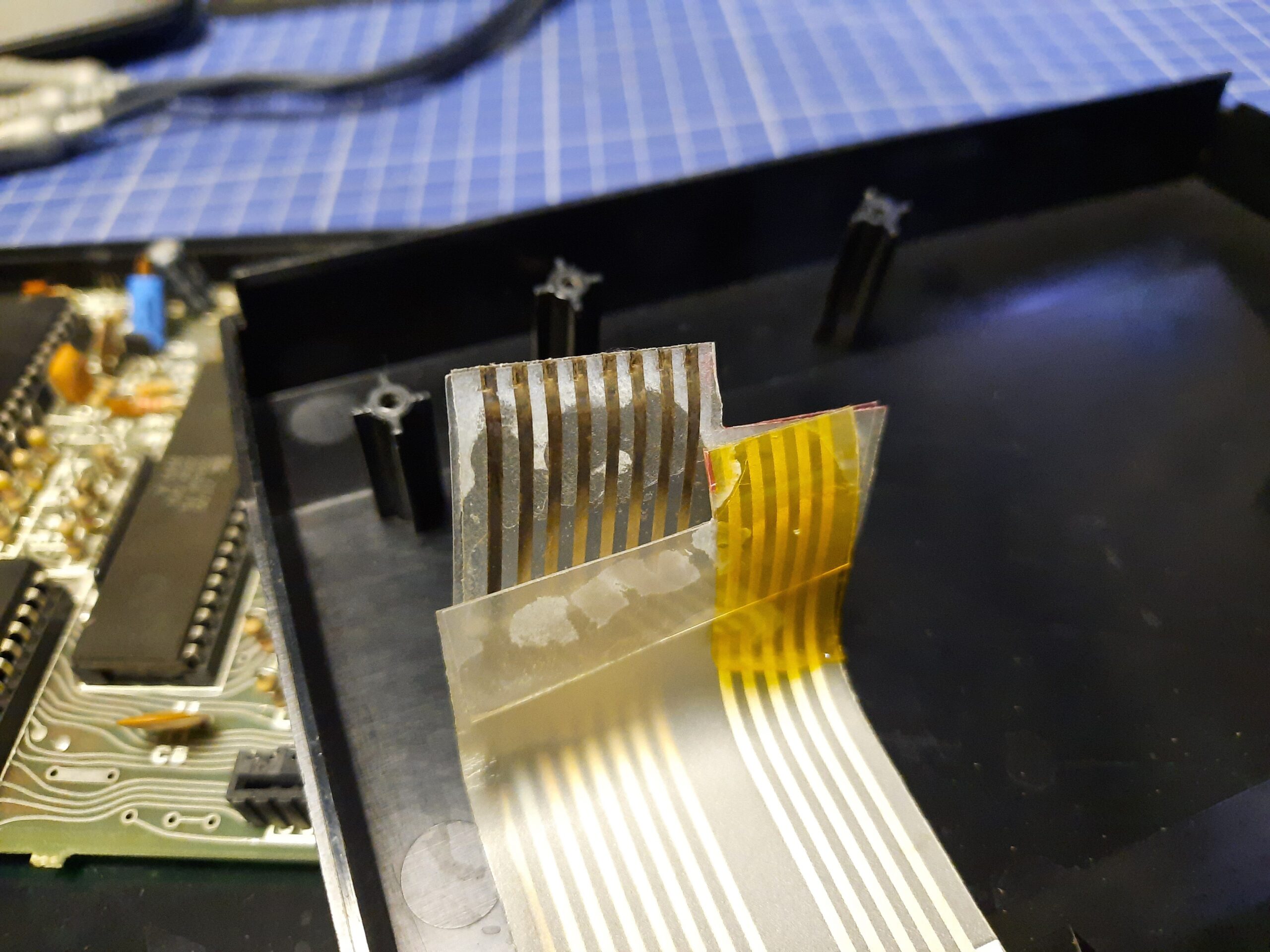

The connectors on the old membrane were too brittle.
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_112250-1600x1200.jpg)

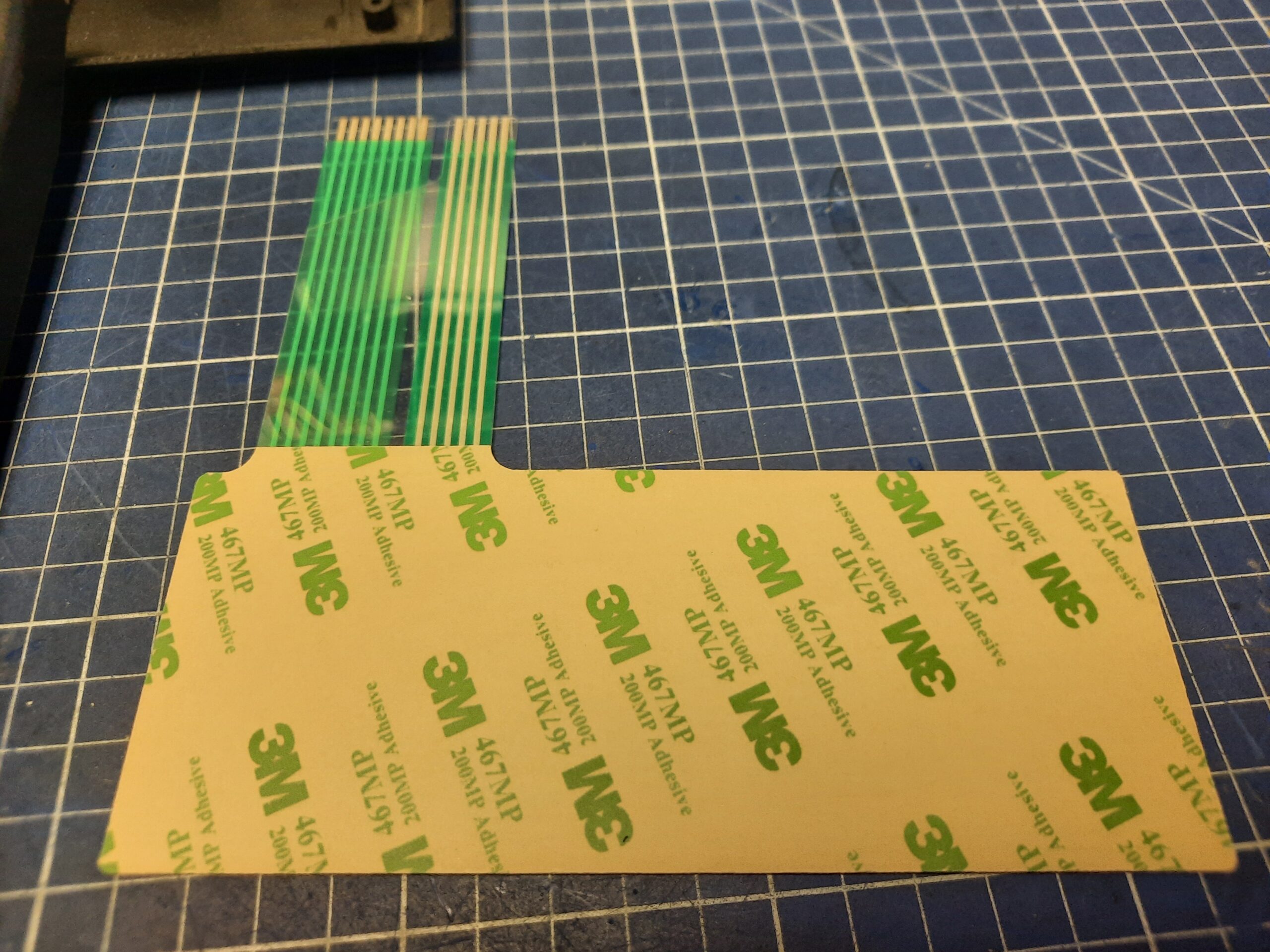

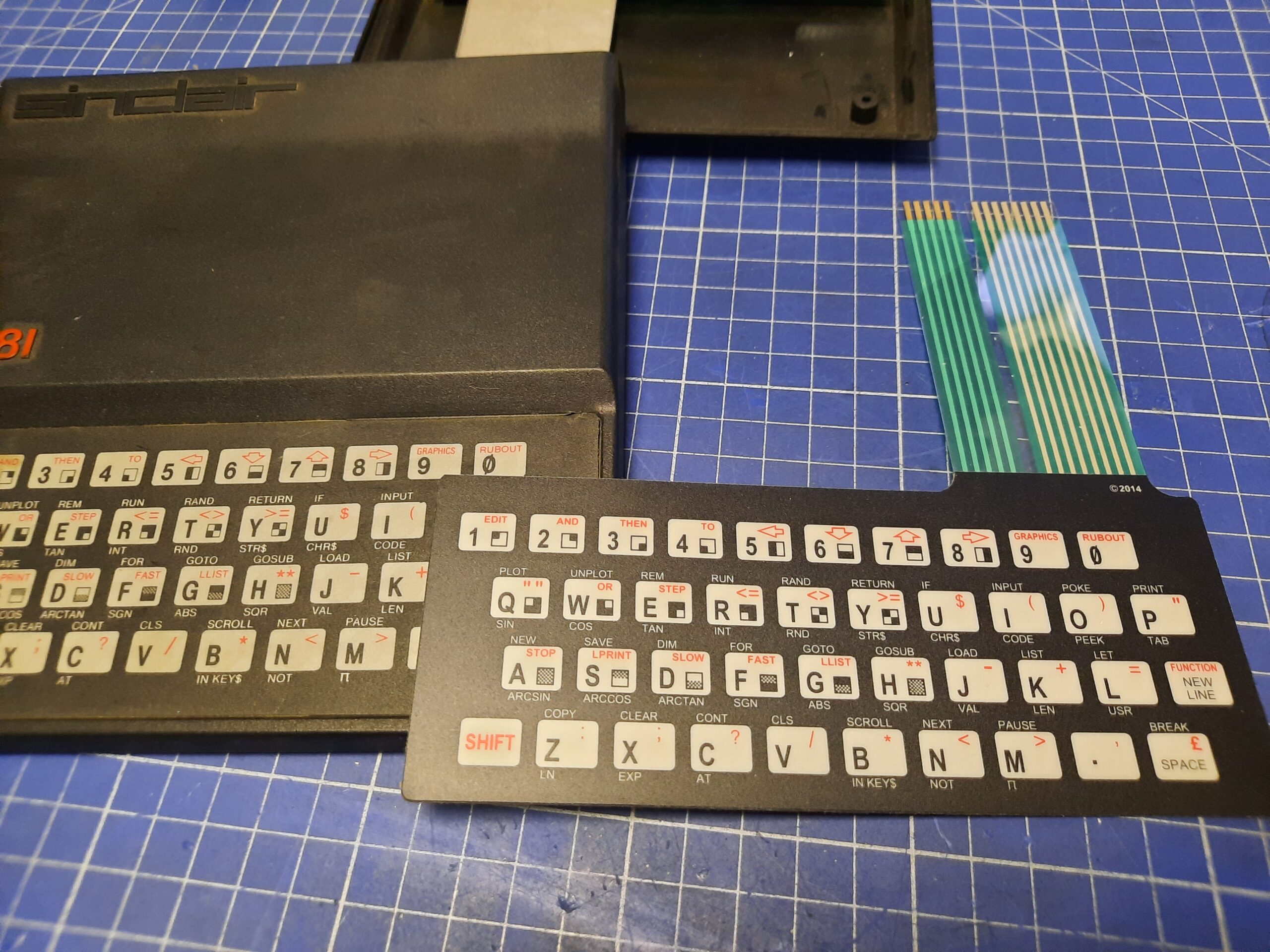

I ordered the new membrane in one of eBay‘s stores and it arrived quickly. The quality is awesome!
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_114129-1600x1200.jpg)
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_114139-1600x1200.jpg)
The swap

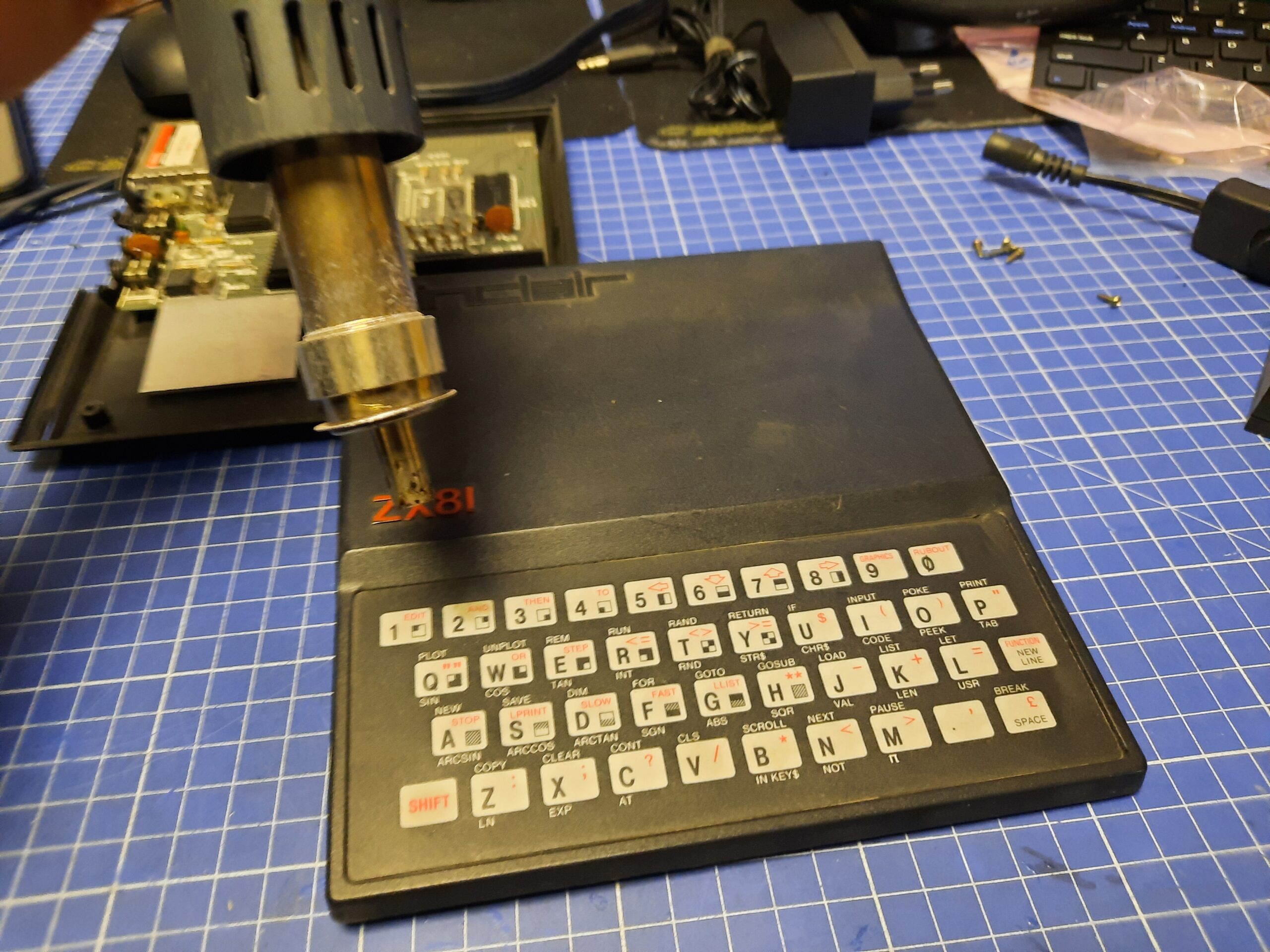

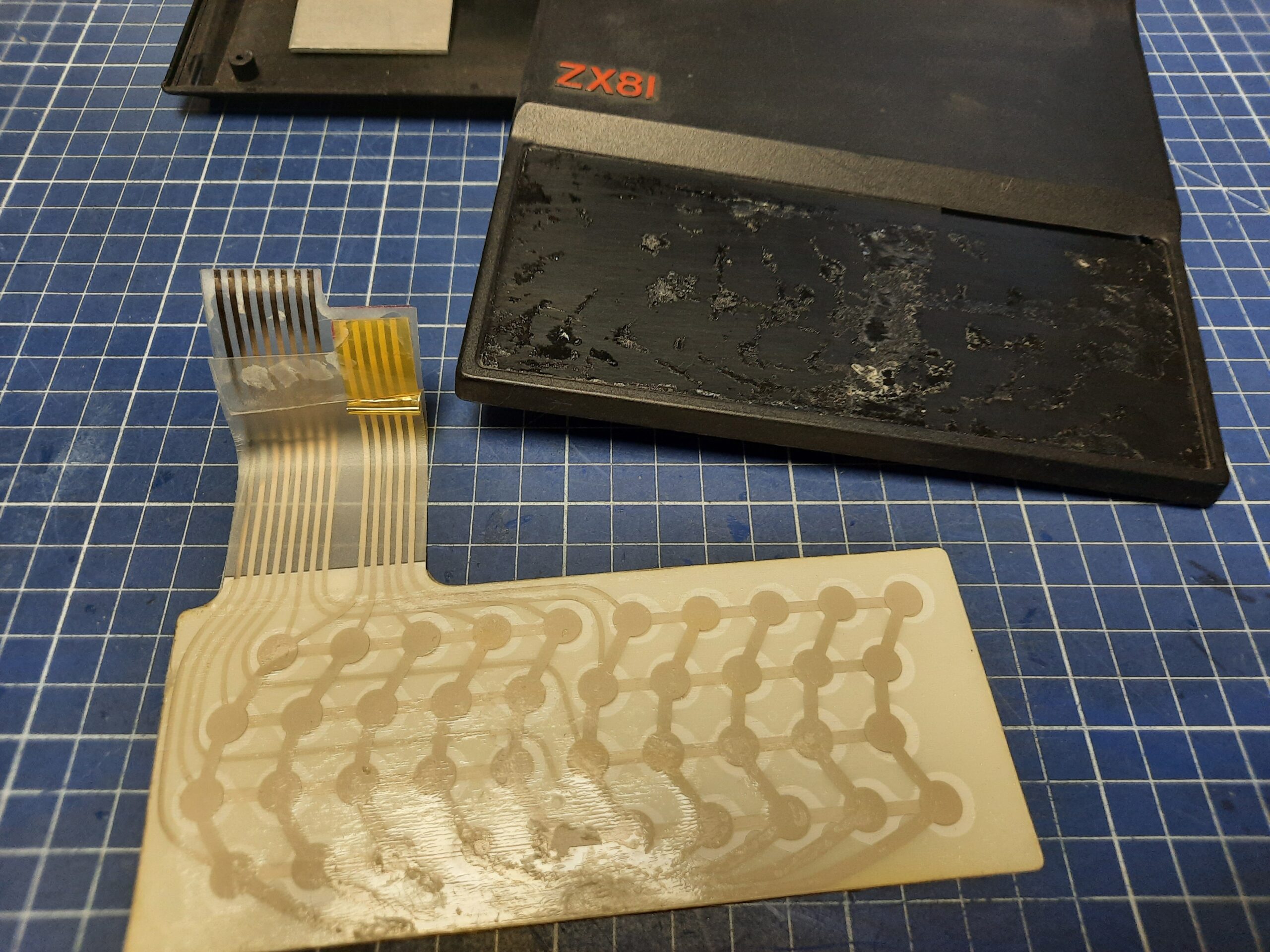

I had to remove the old membrane first. I’ve used a hot-air gun to soften the old glue.
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_114414-1600x1200.jpg)
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_114533-1600x1200.jpg)

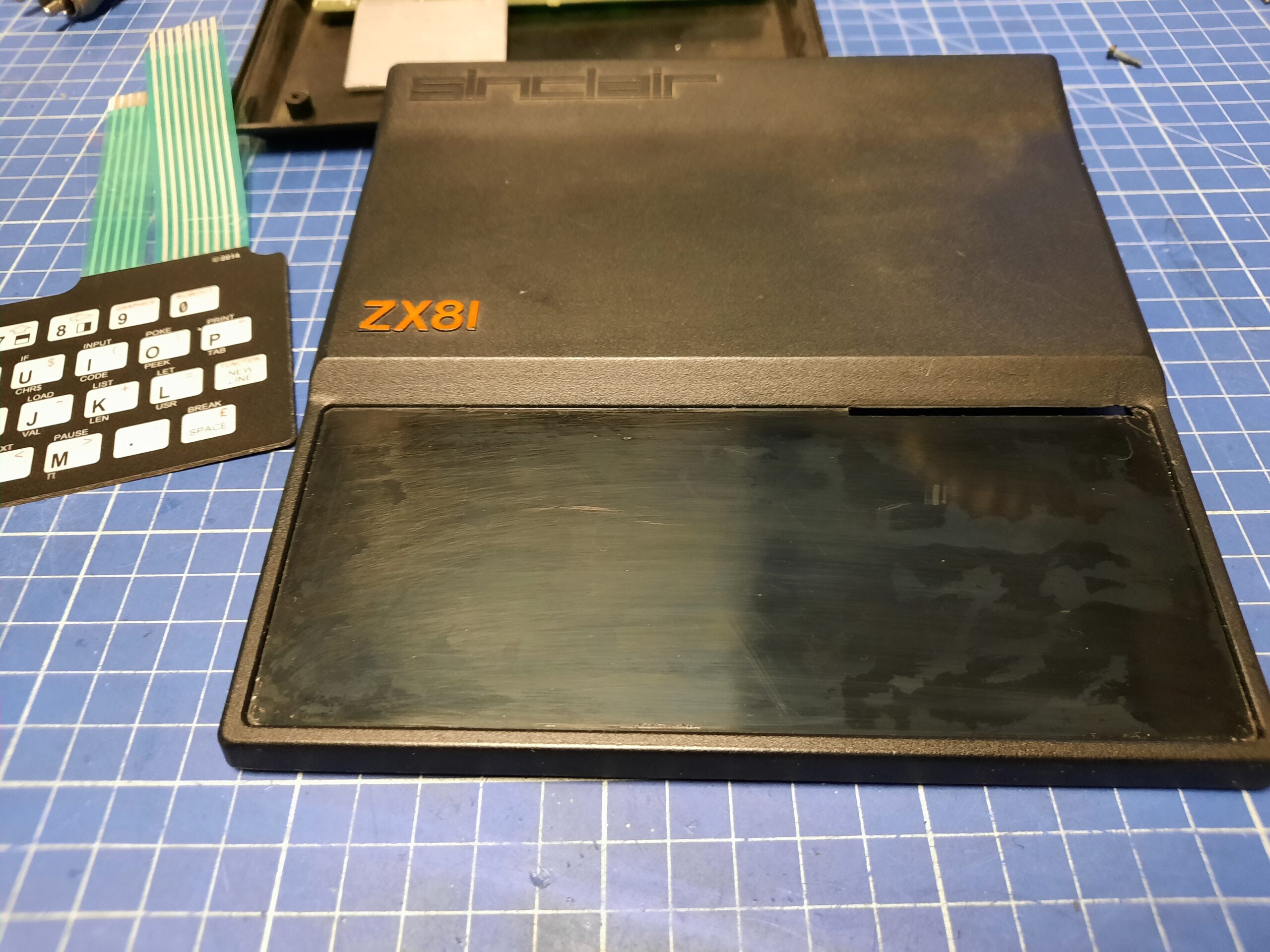

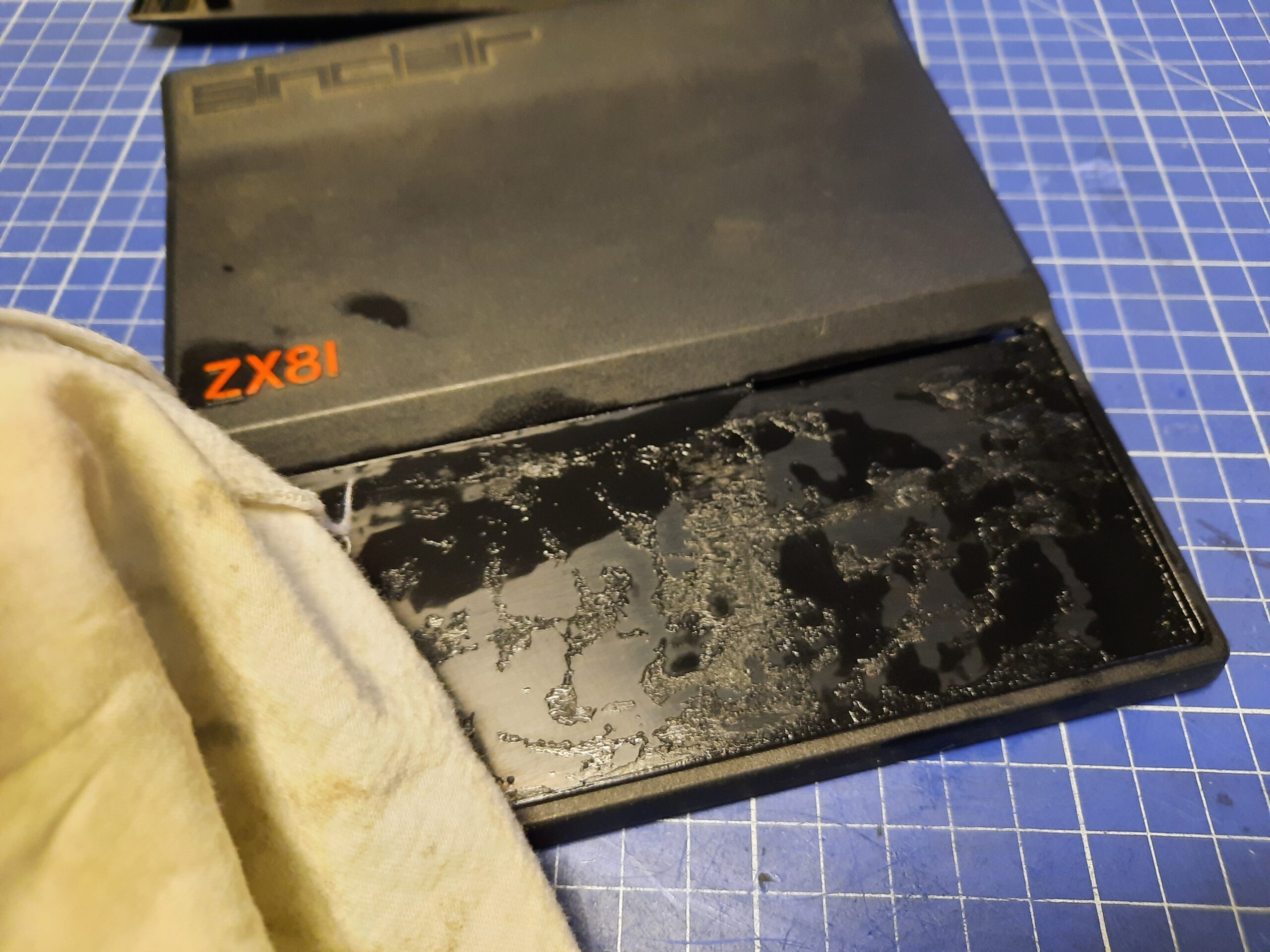

The remaining glue was cleaned using a piece of cloth and some hydrocarbon solvent.
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_114628-1600x1200.jpg)
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_121441-1600x1200.jpg)

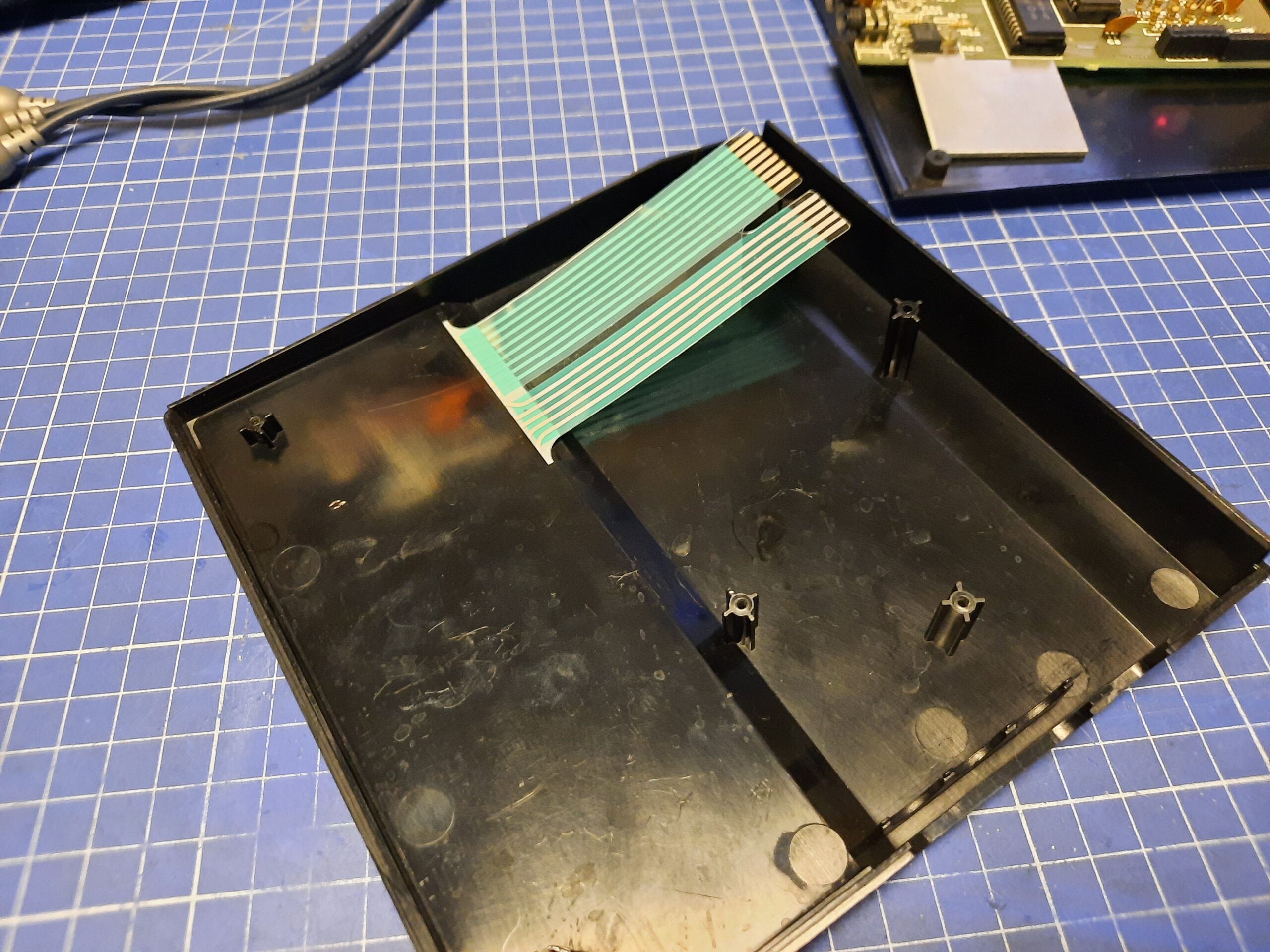

Fitting a new membrane.
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_130627-1600x1200.jpg)

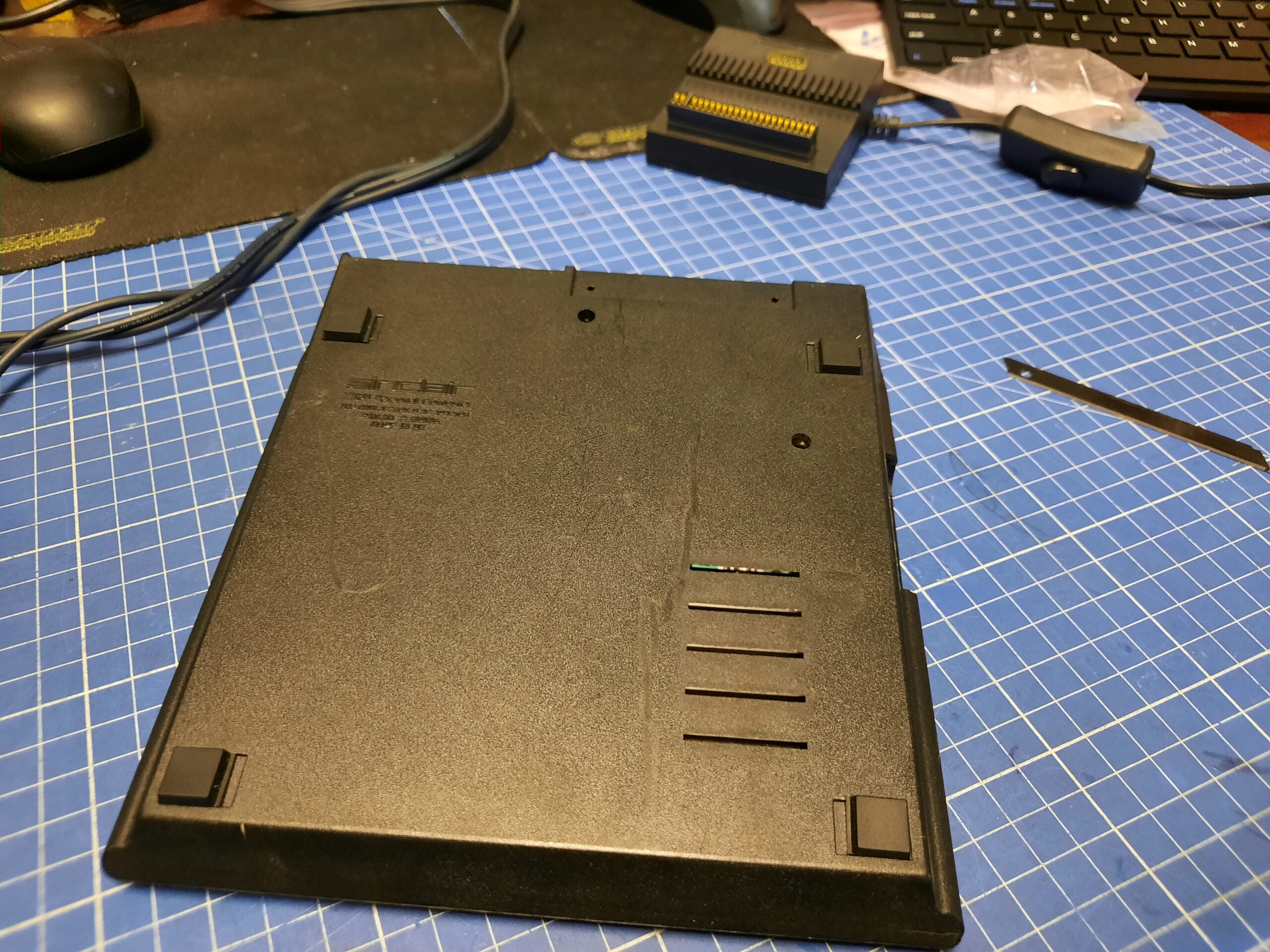

I’ve also added some nice rubber pads on the bottom 😉
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_132115-1600x1200.jpg)

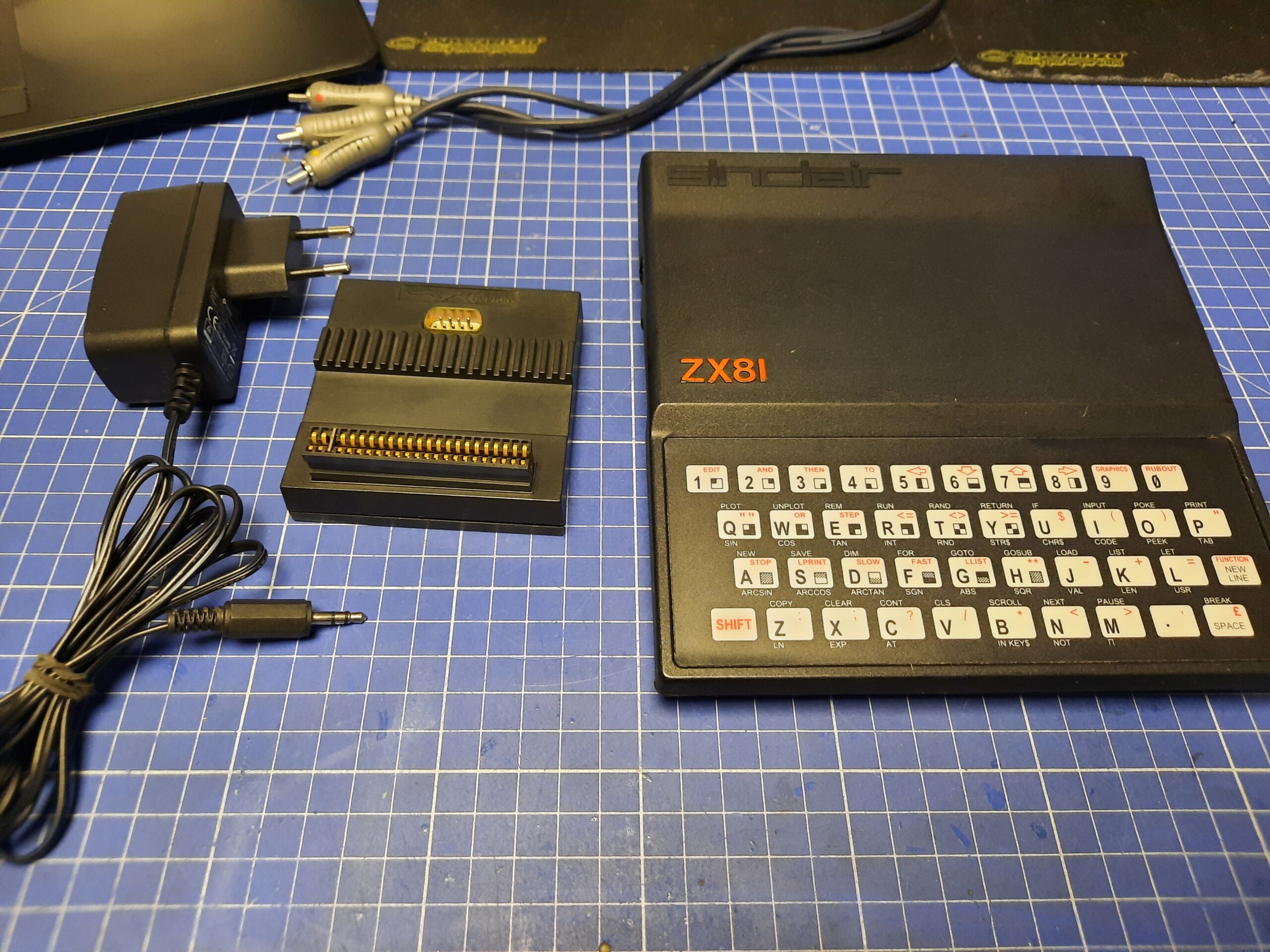

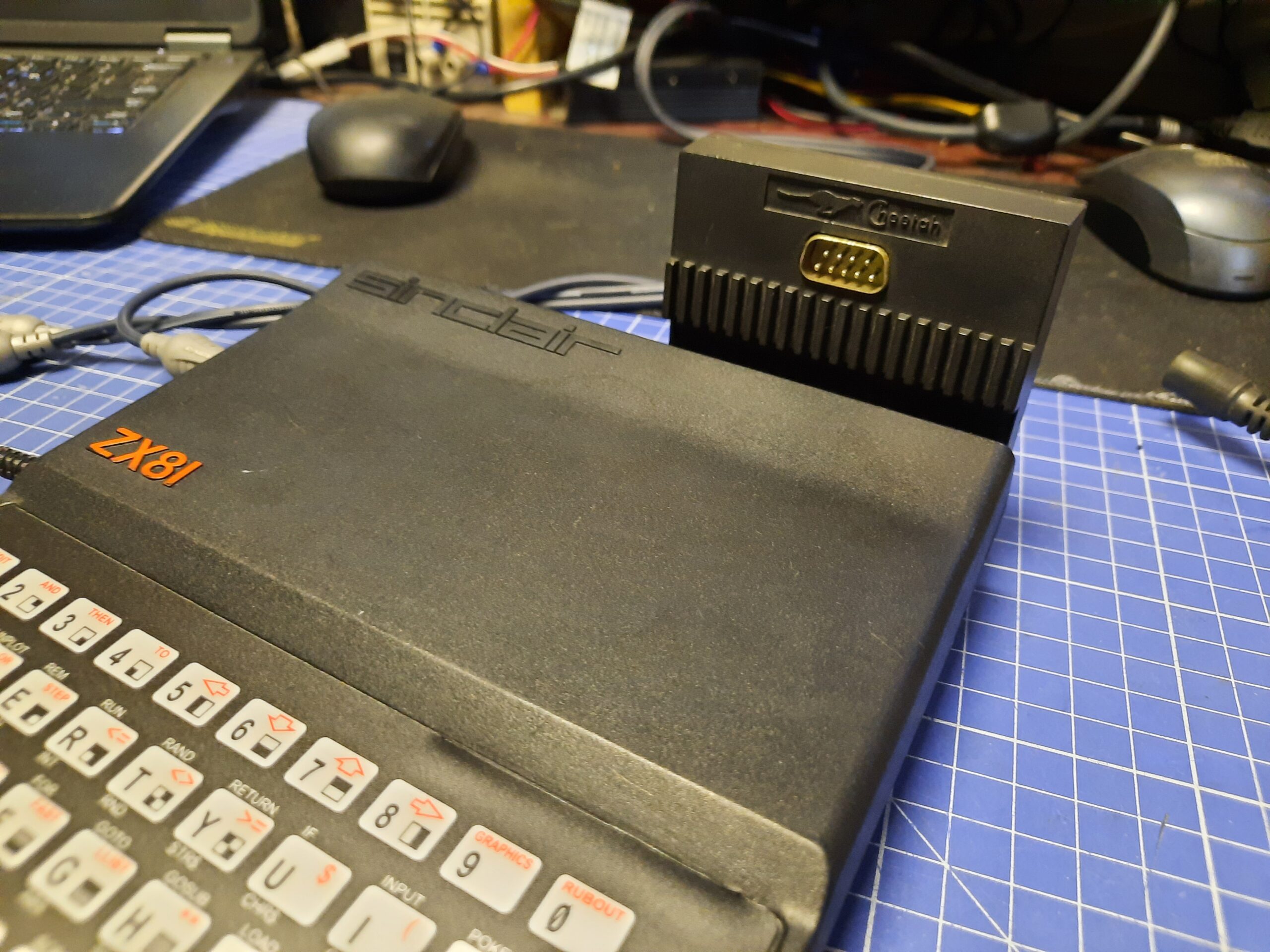

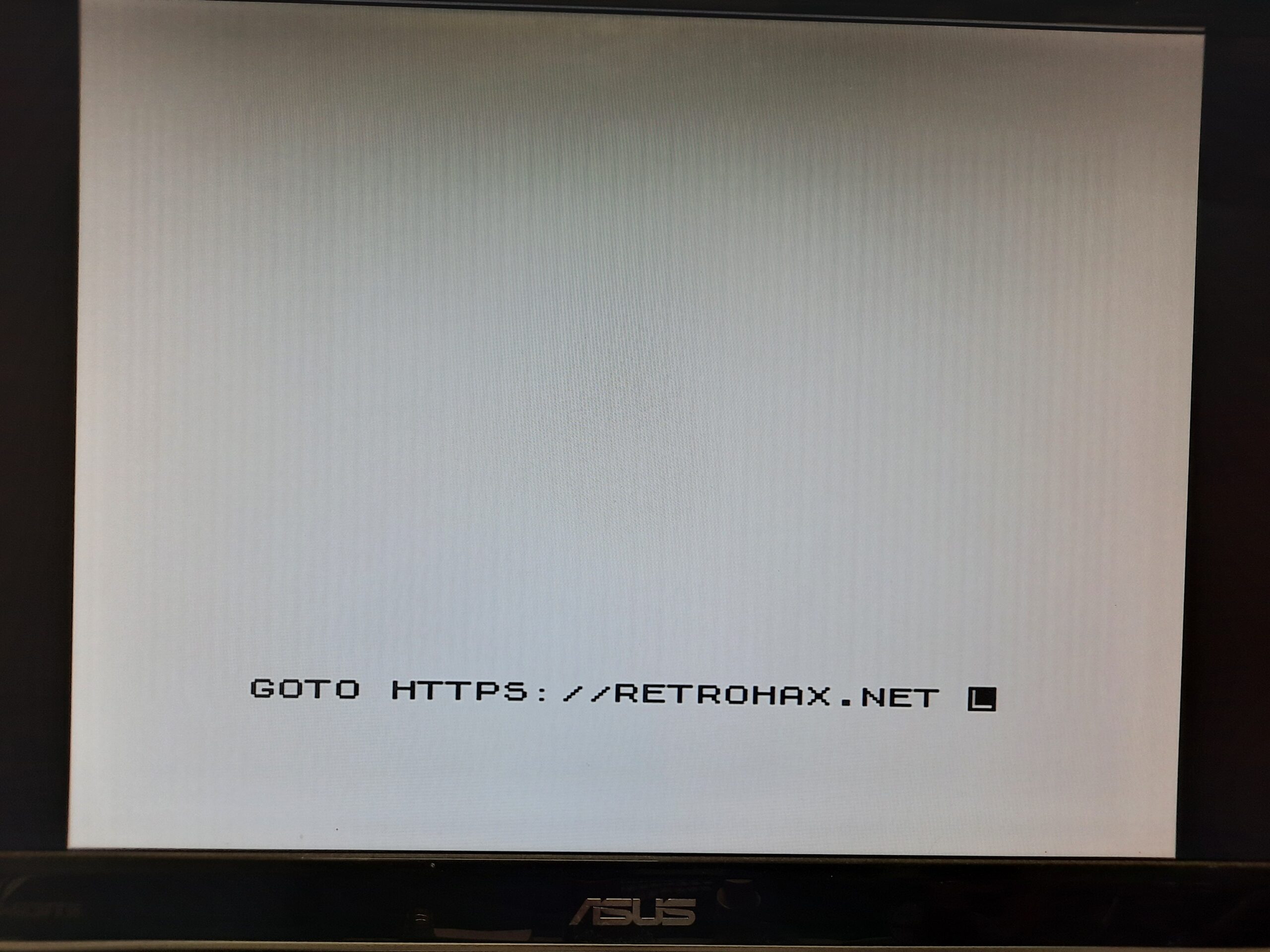

This is it! ZX 81 works flawlessly now 🙂
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_132525-1600x1200.jpg)
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_131911-1600x1200.jpg)
![](https://retrohax.net/wp-content/uploads/2023/04/20211220_131755-1600x1200.jpg)
Outro
