Intro

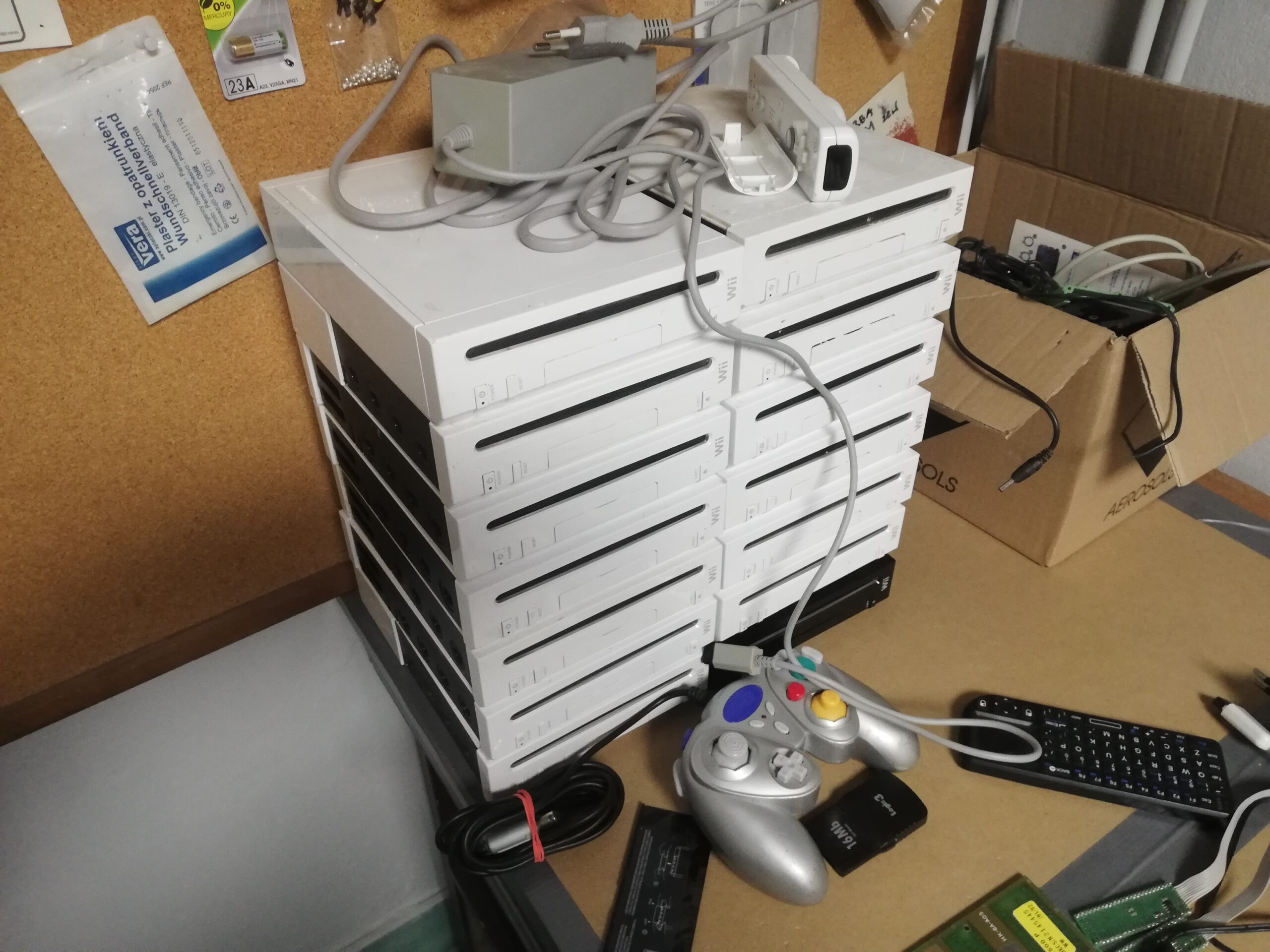

This short post is about the beginning of my journey into the console world. Some time ago, I figured want to show my sons all generations of consoles. I started buying broken (because getting working ones is boring:) units like crazy, to learn how to repair and hack them. I think I’ve got around 60 units of various sort back then. More on this in future posts. This time though, I want to show you a quick battle with Nintendo Wii controllers that I needed to start playing/fixing with Nintendo Wii consoles.

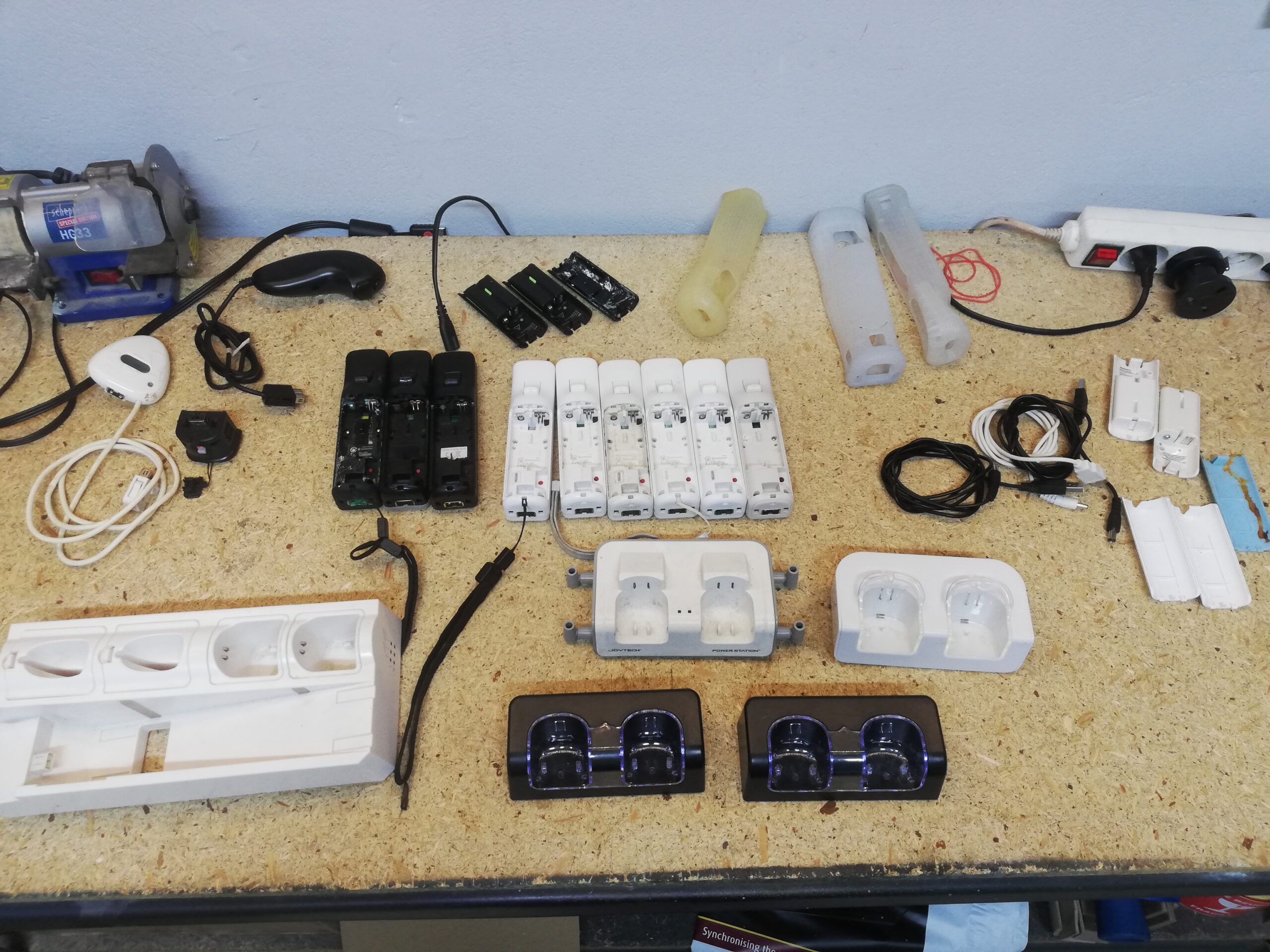

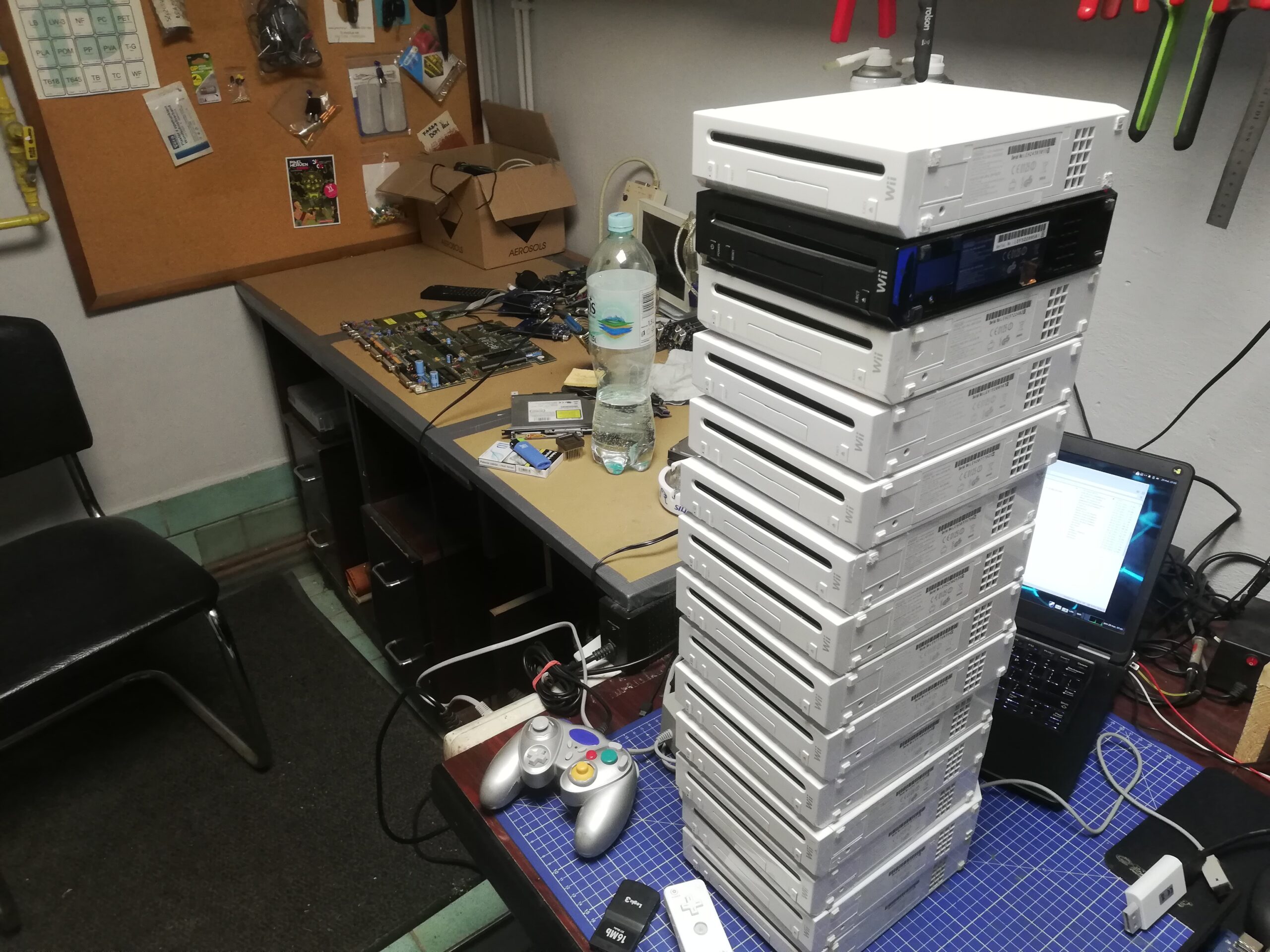

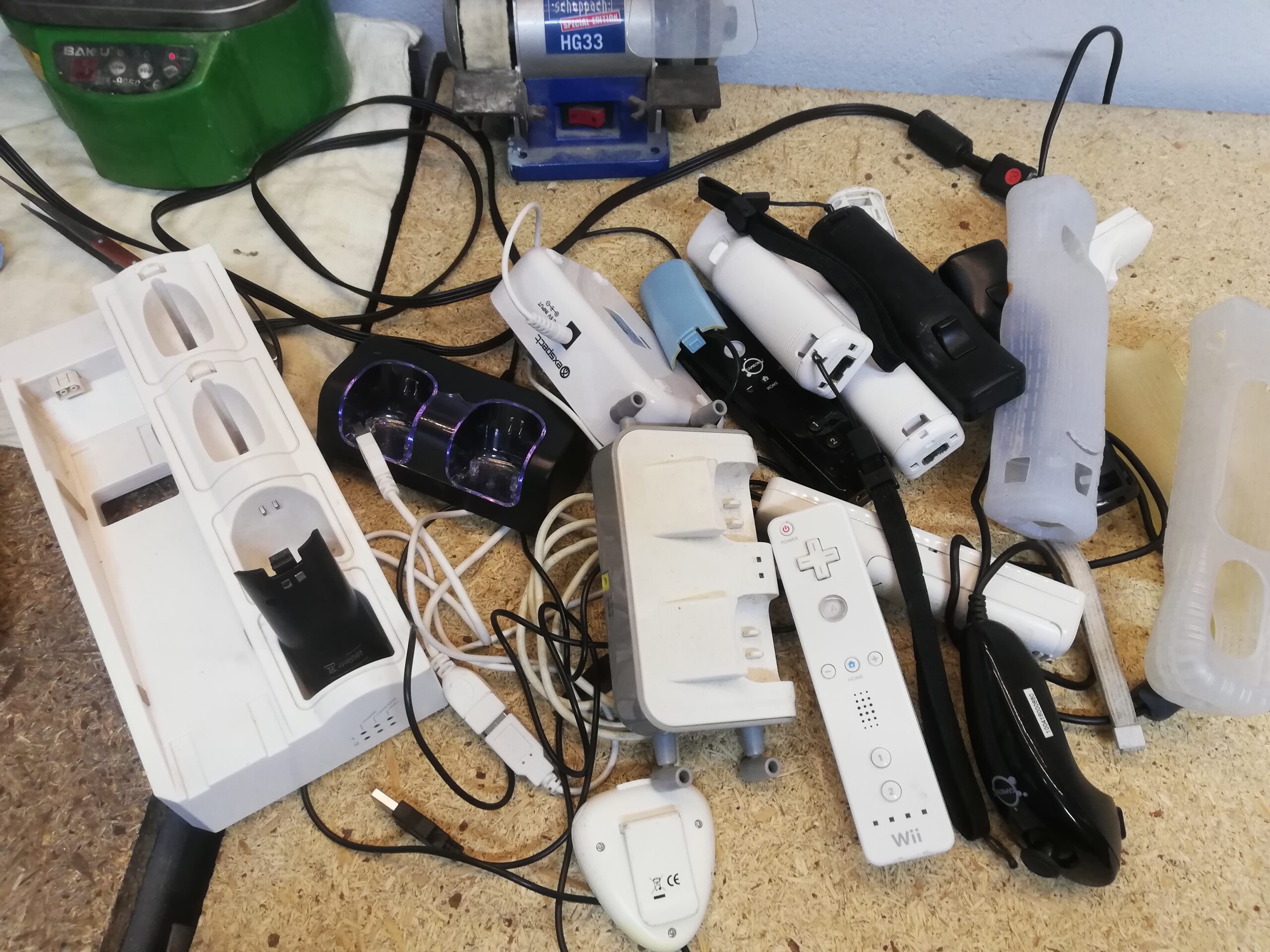

Here is a pile of gear that came along with the consoles.

Controllers overview

Turned out I had 9 dead controllers. Dead … as none worked.

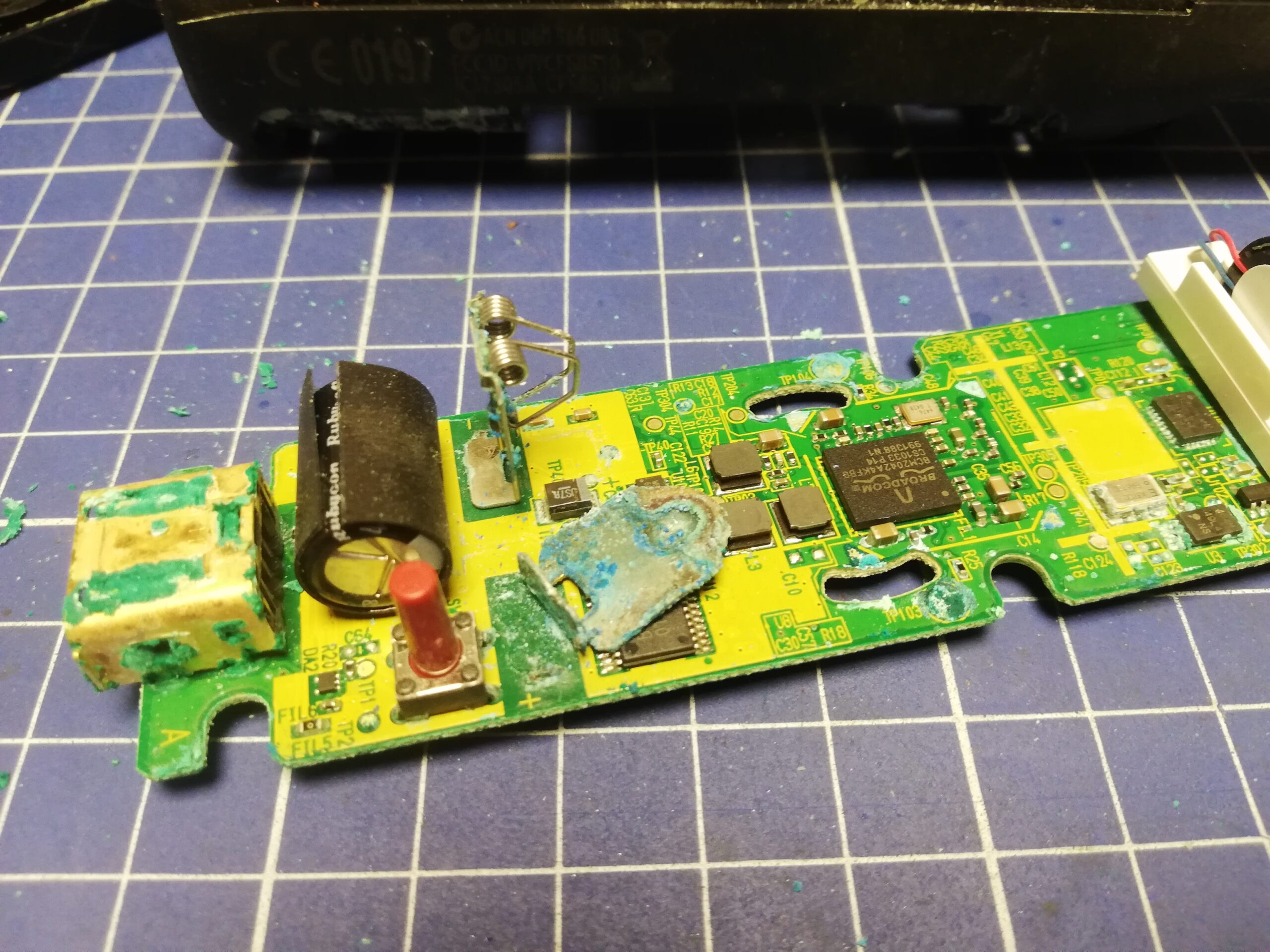

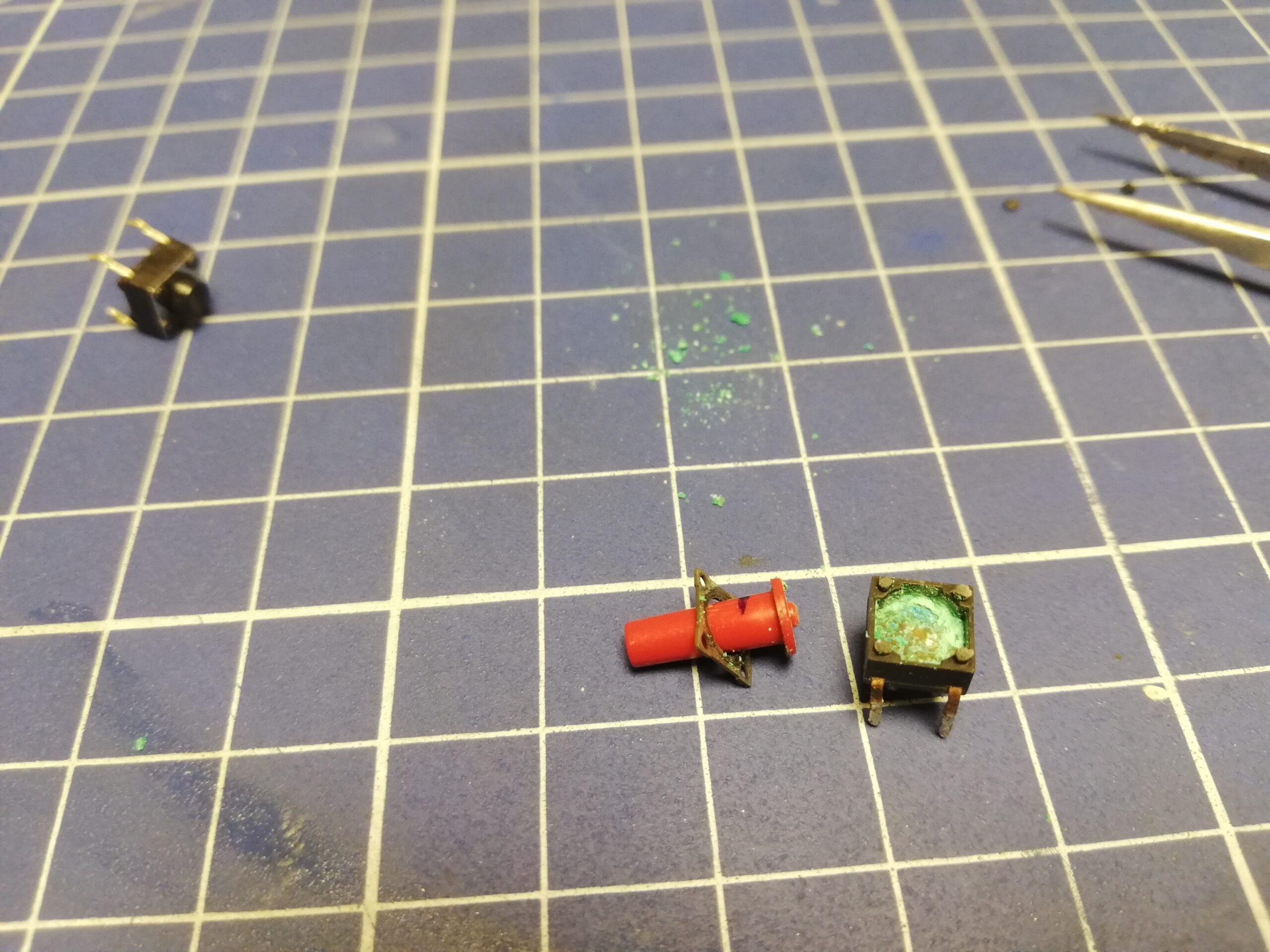

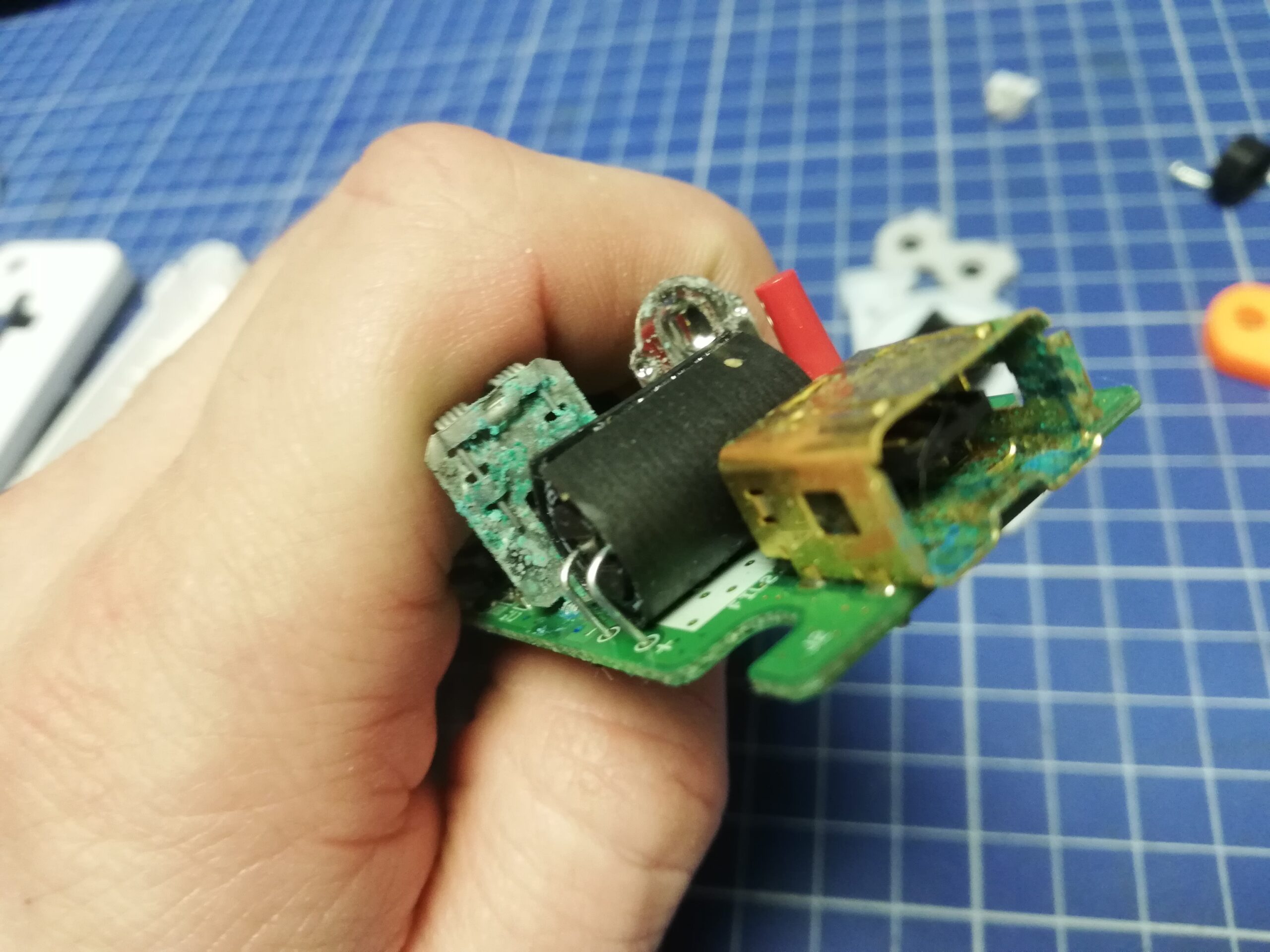

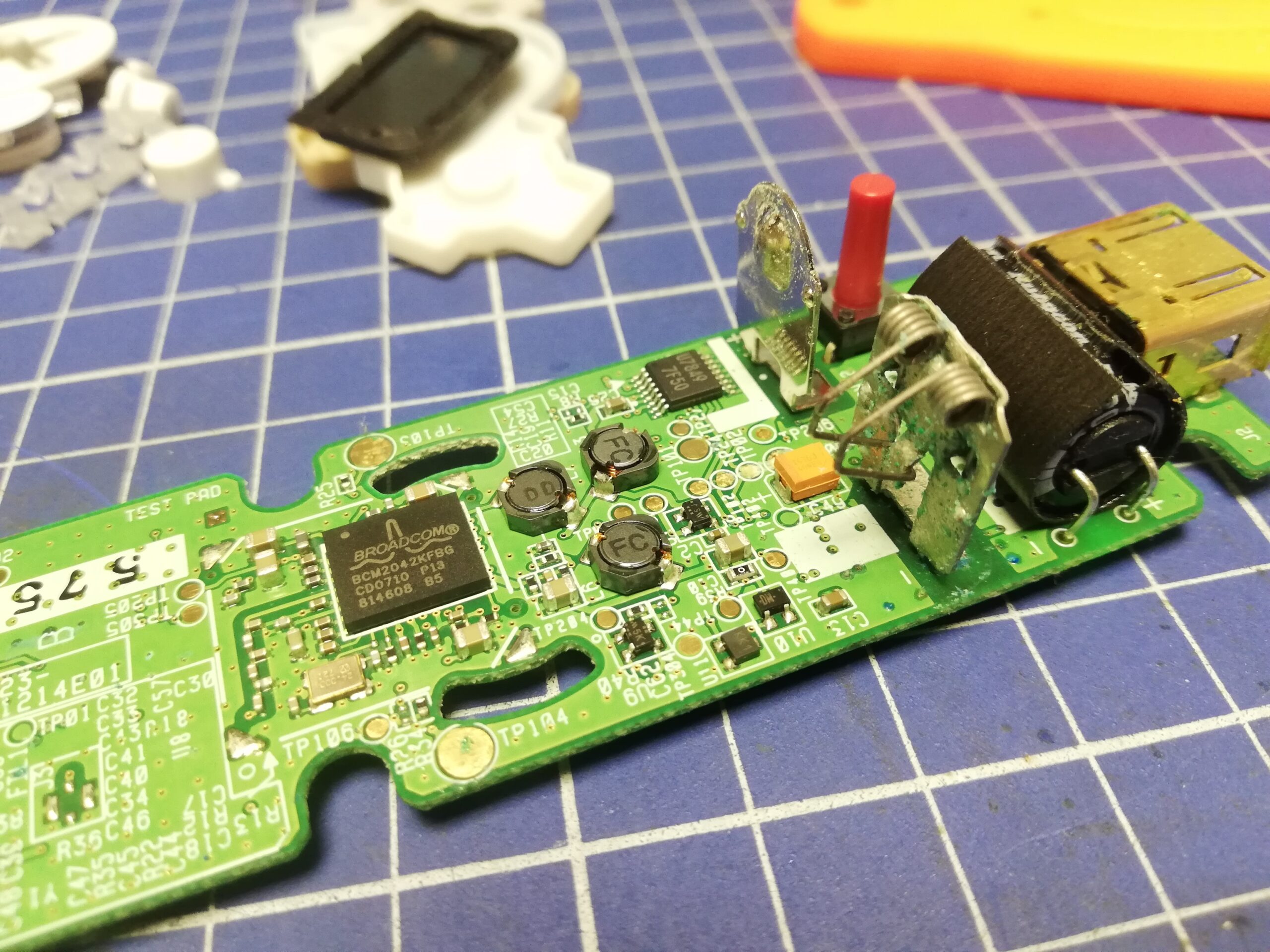

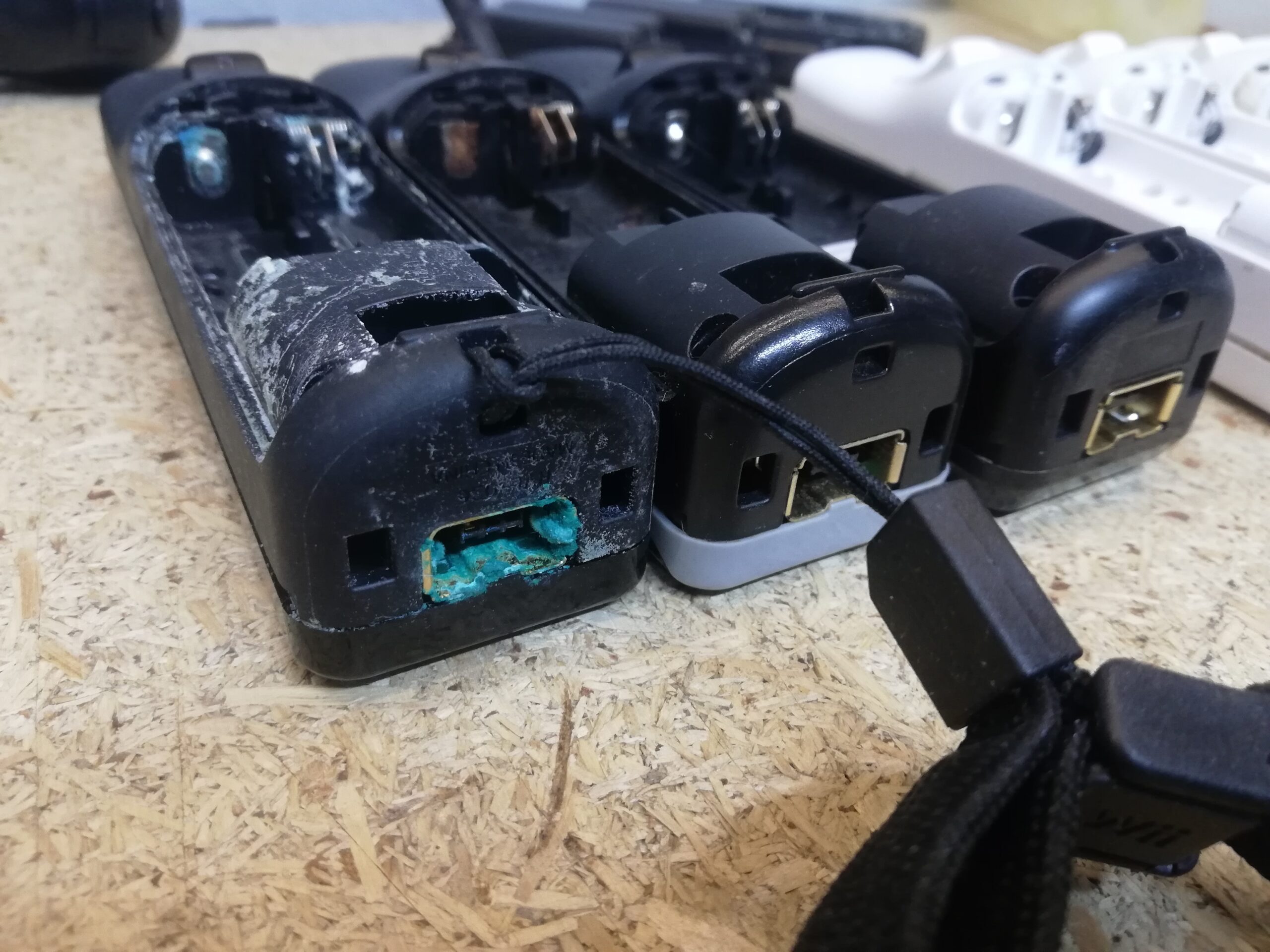

All of the batteries were dead. Even worse, some of them did heavy damage by spilling their contents inside.

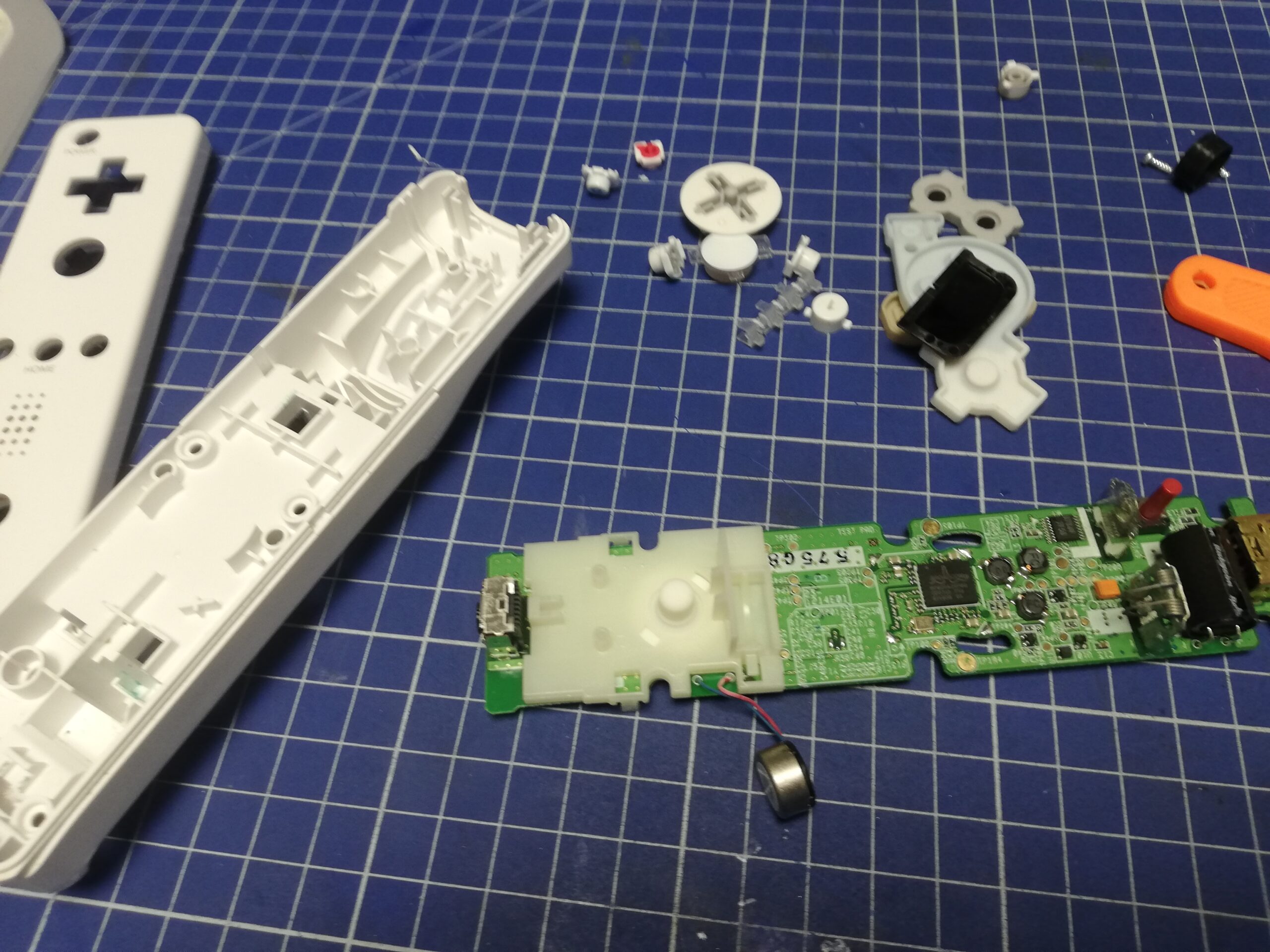

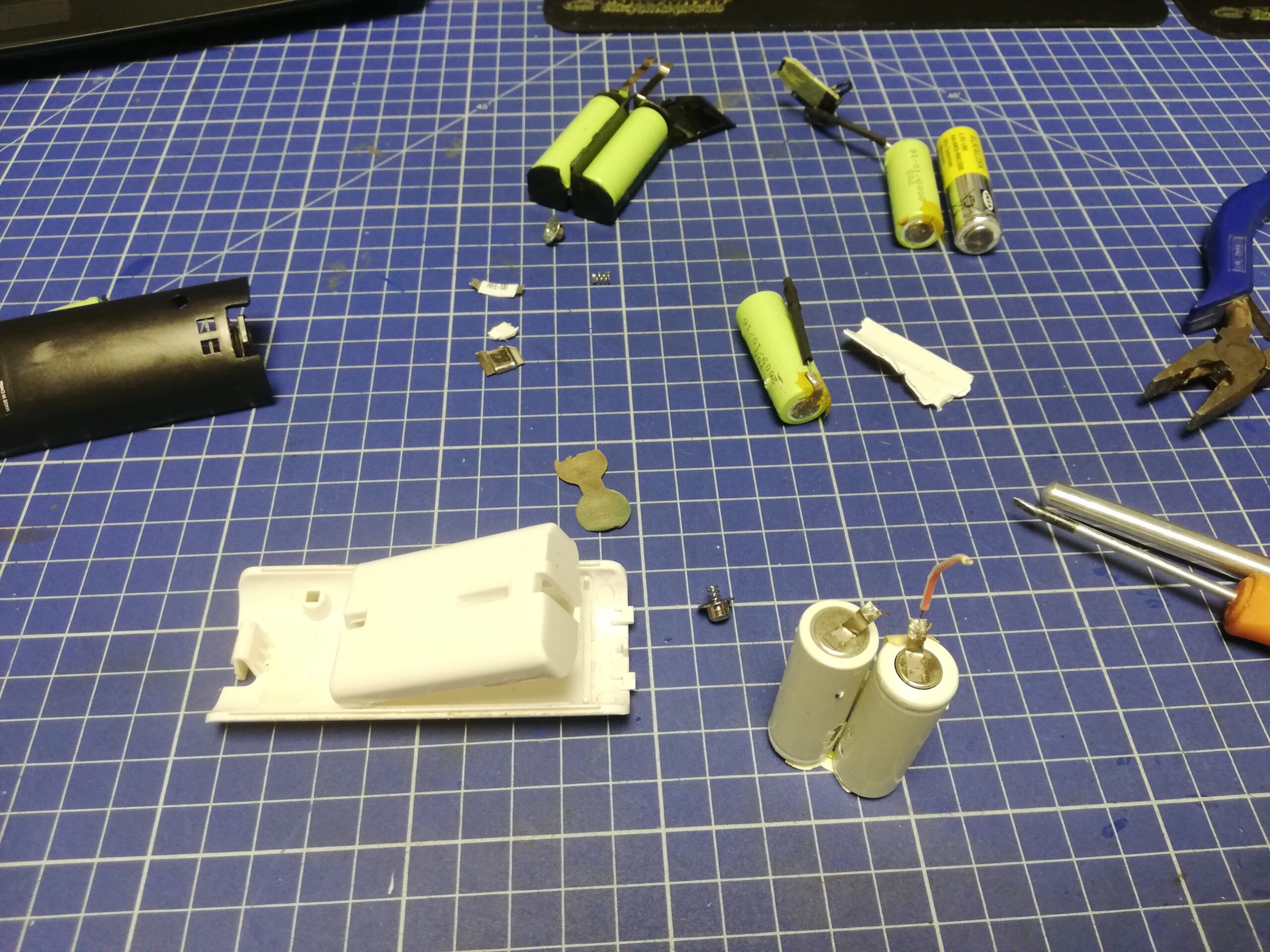

Disassembly followed …

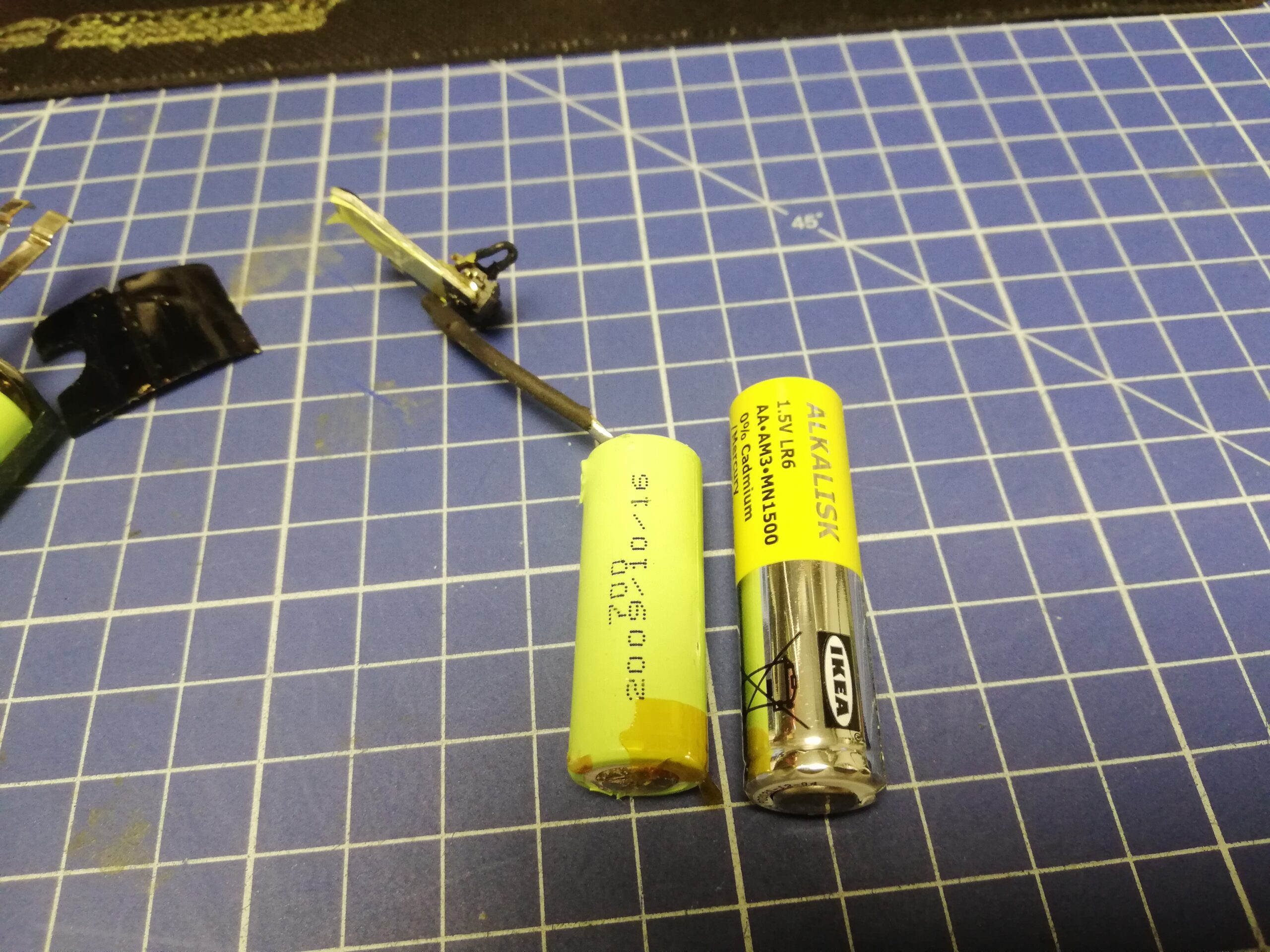

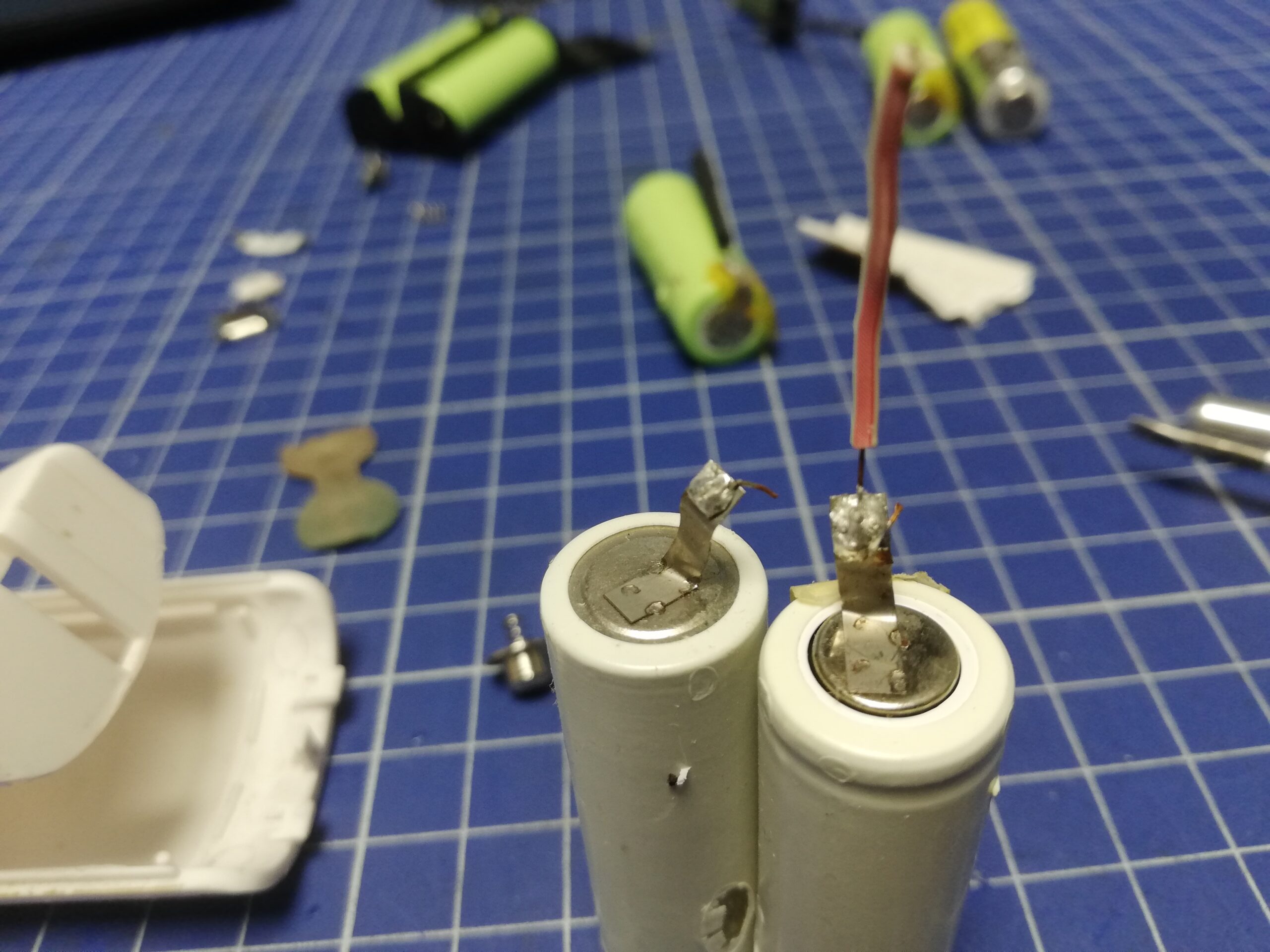

These cells are a bit shorter than the standard AA battery. Below, is a pic for comparison.

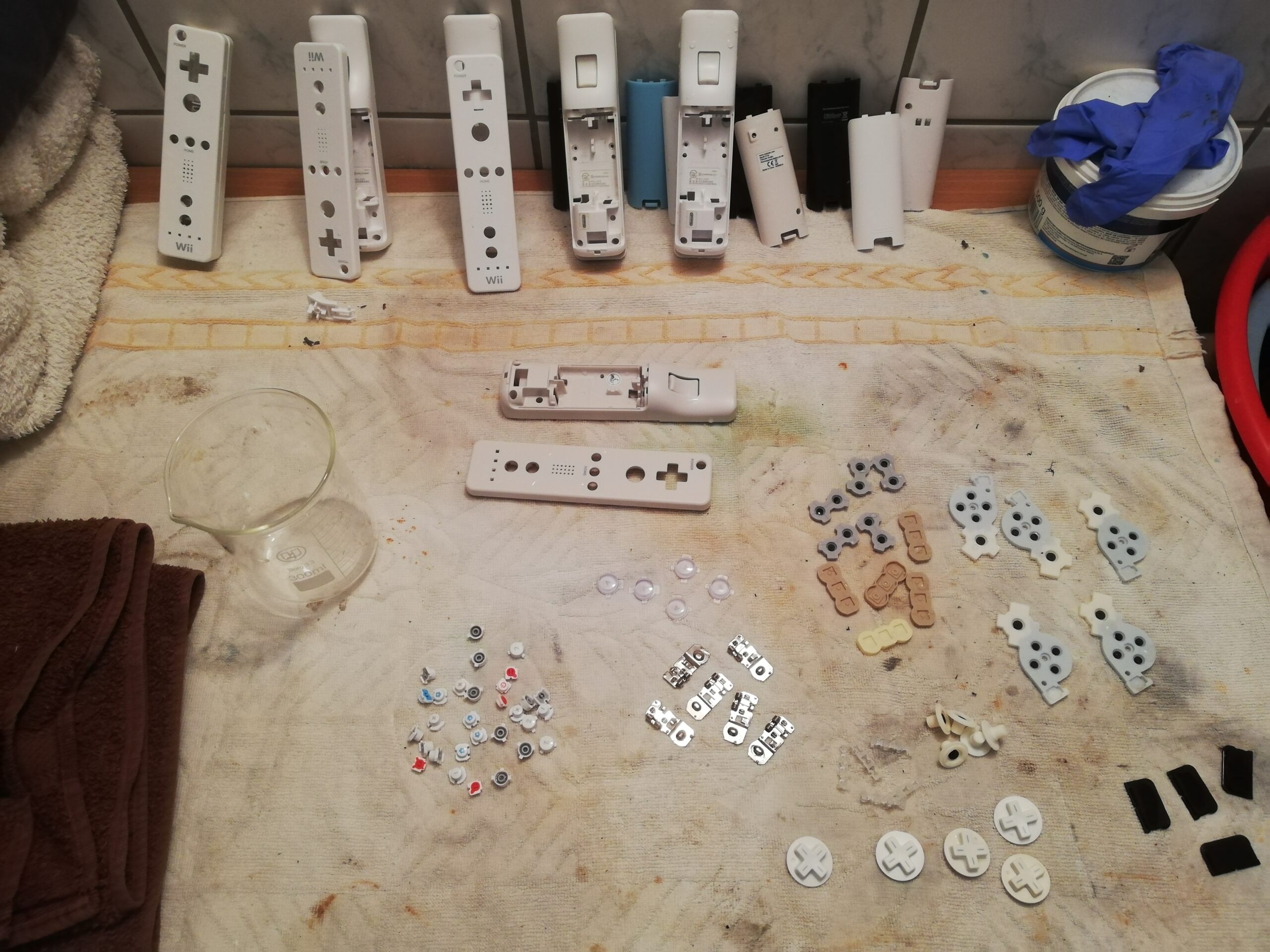

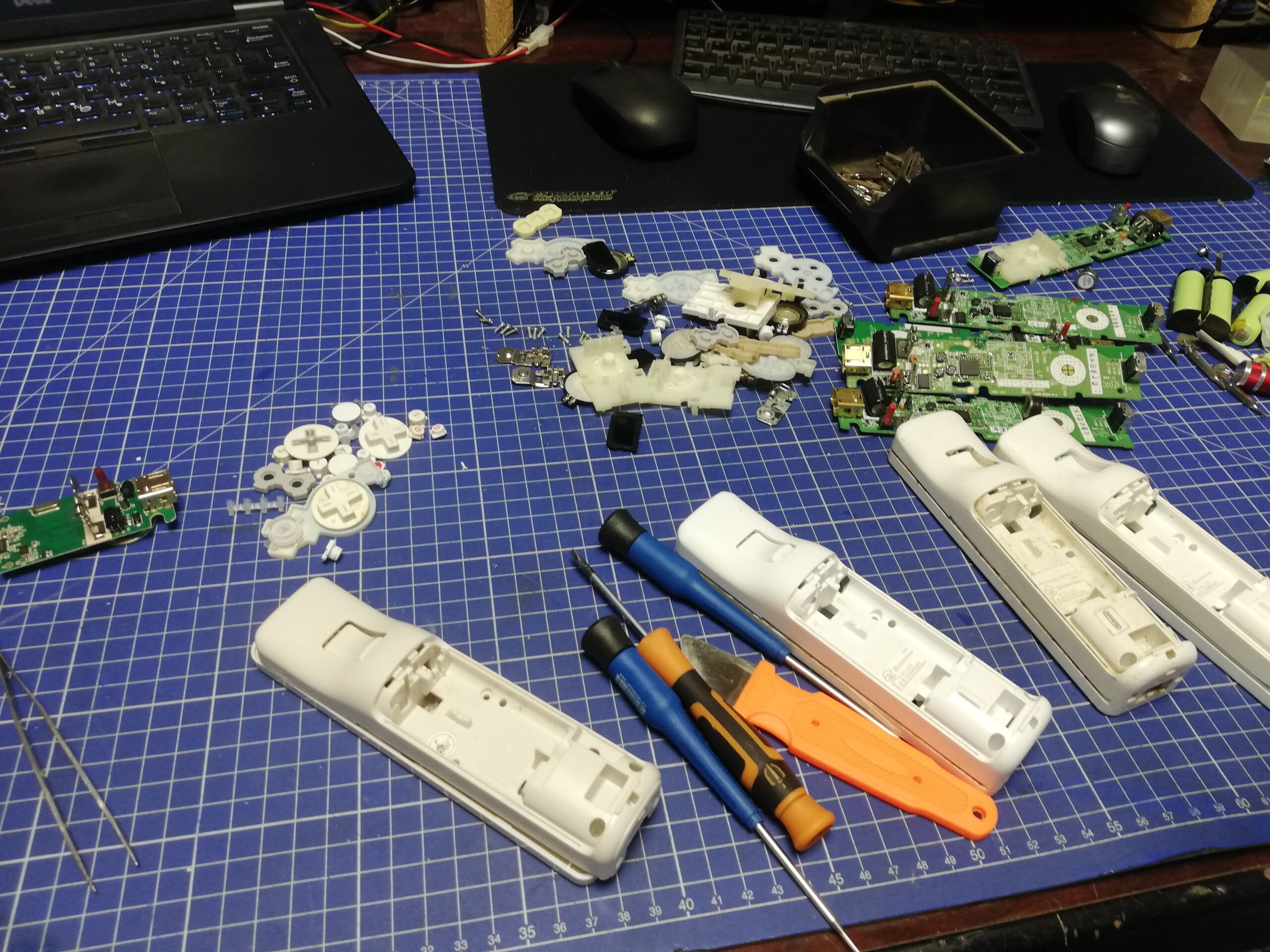

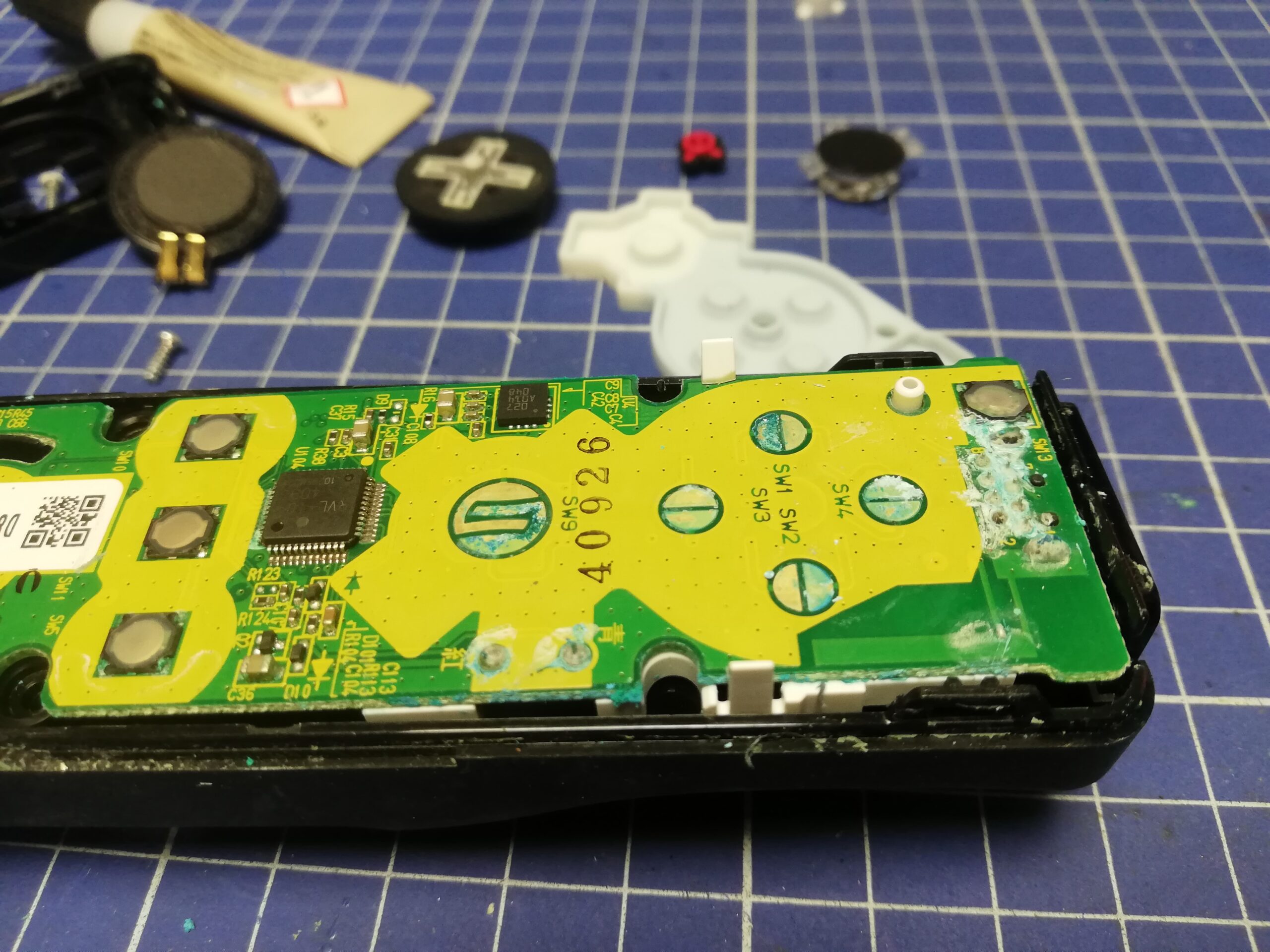

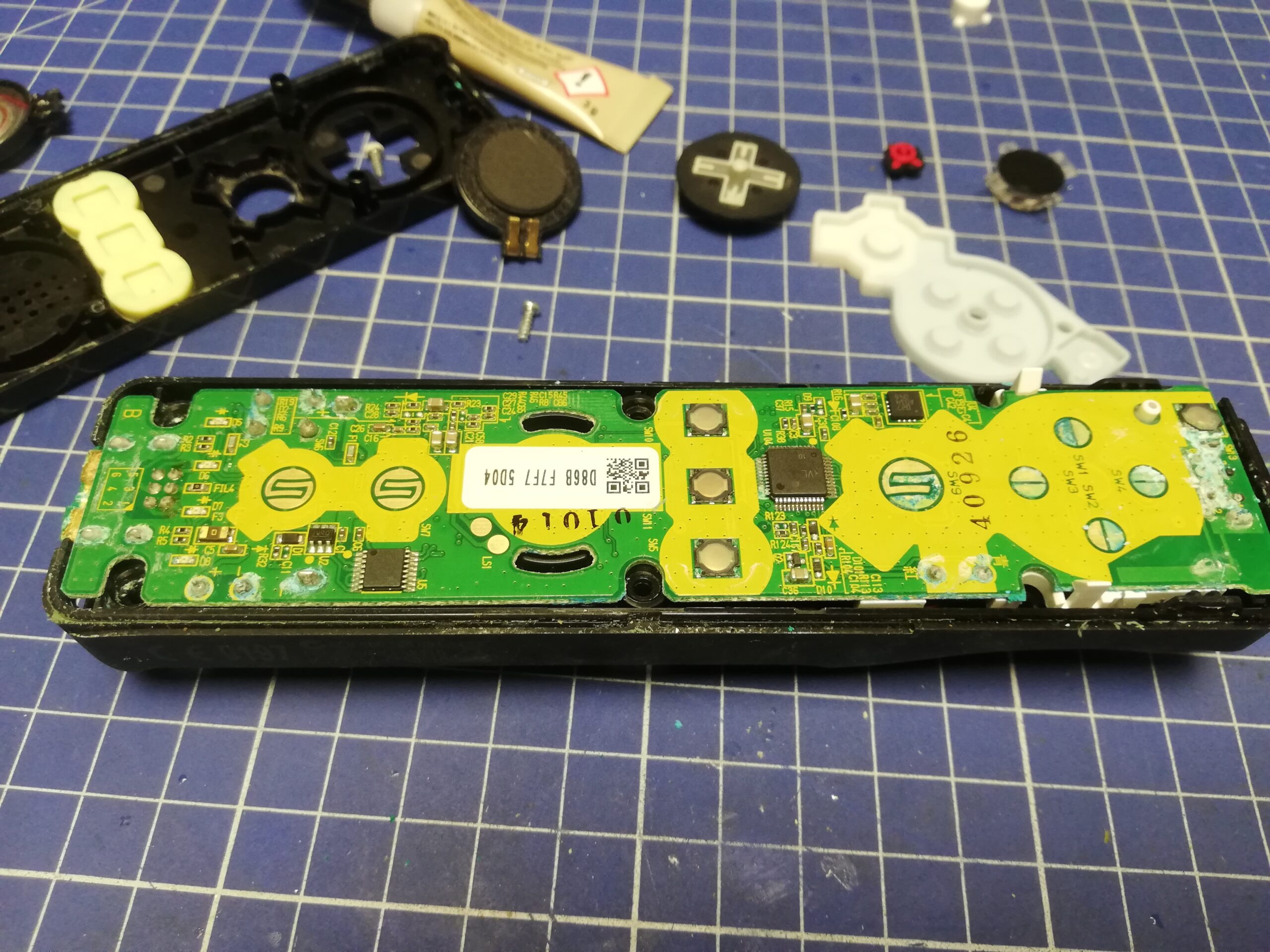

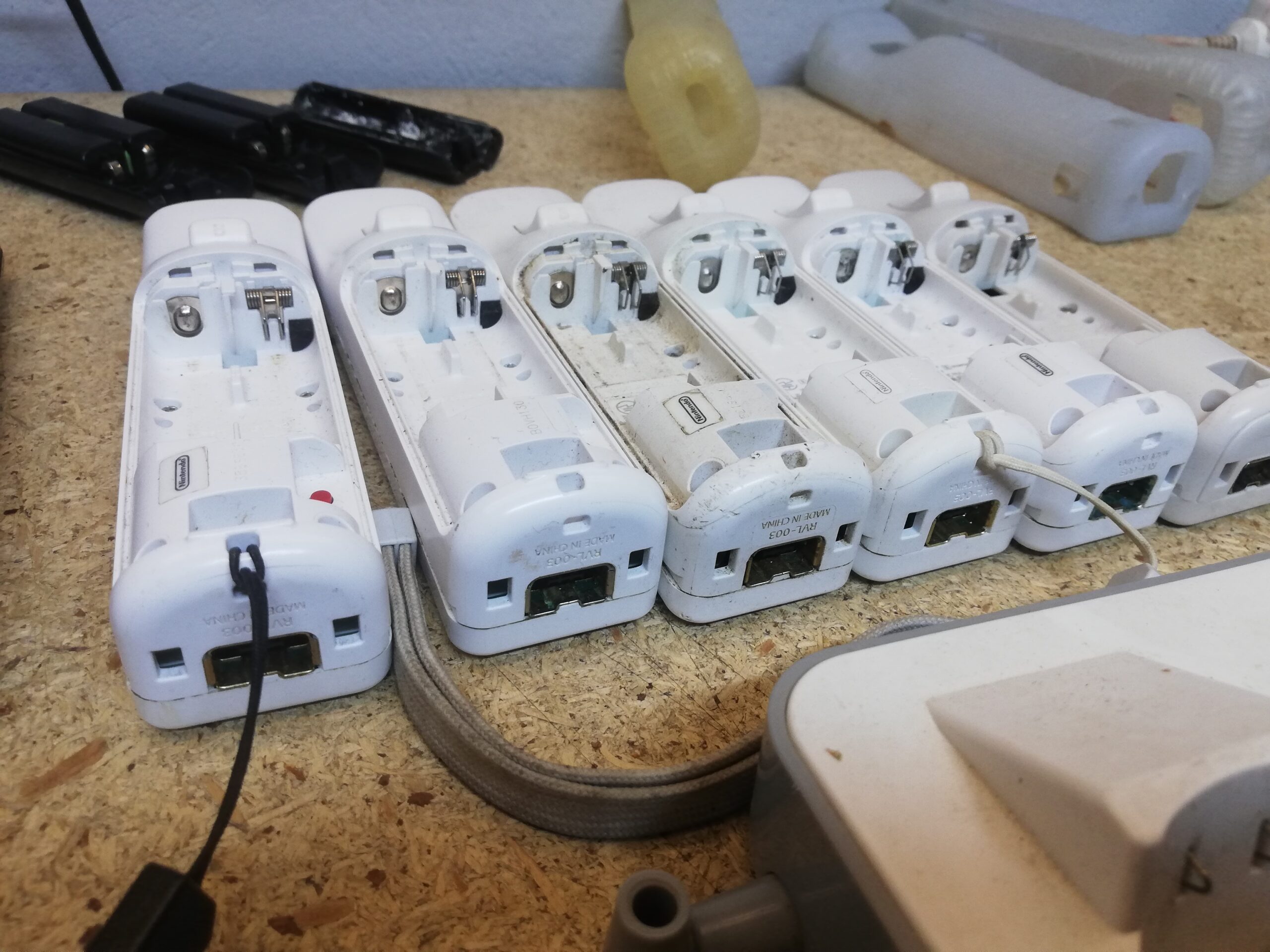

Next, I started to work on controllers. All were disassembled and the plastic cases were cleaned.

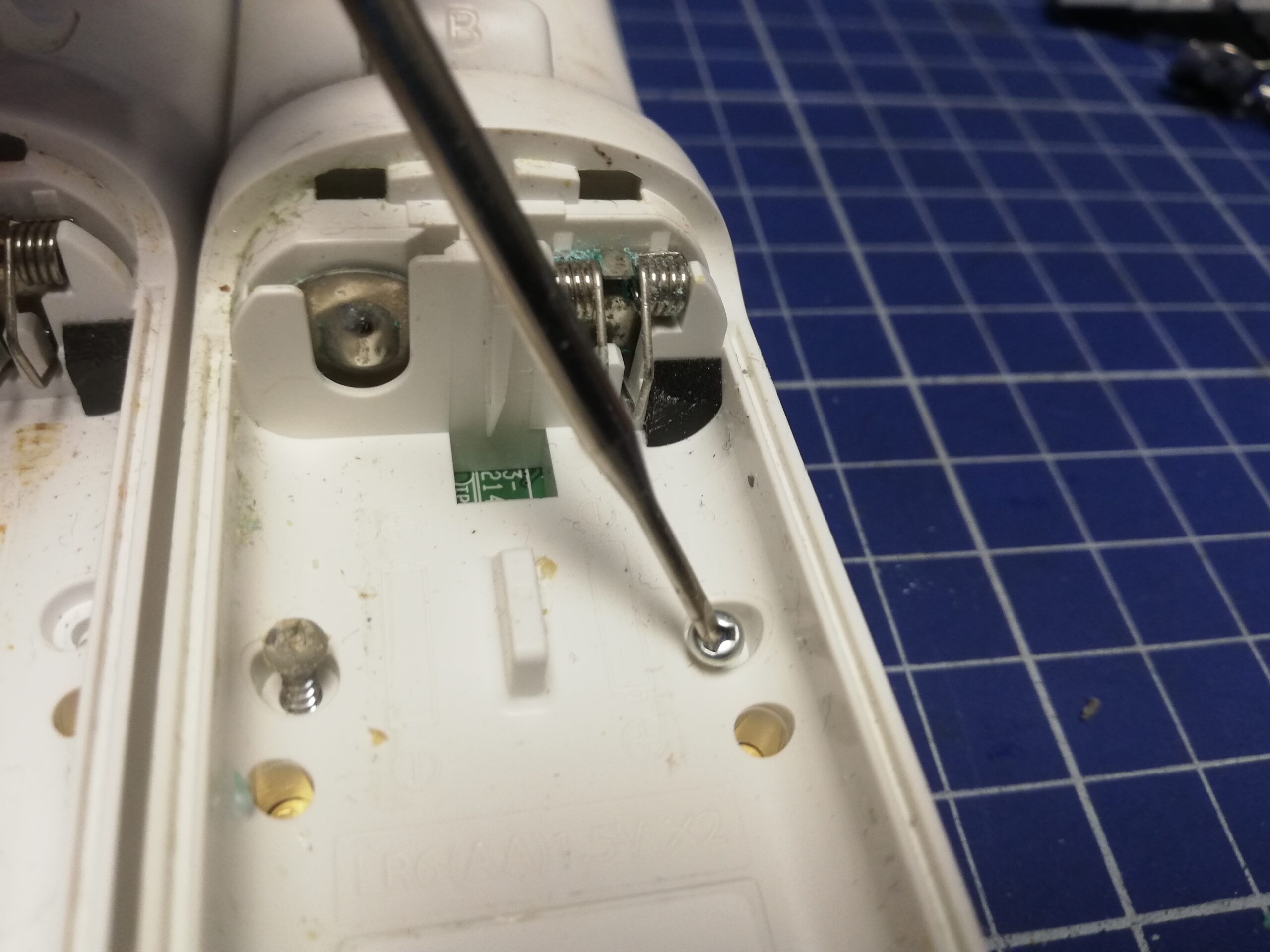

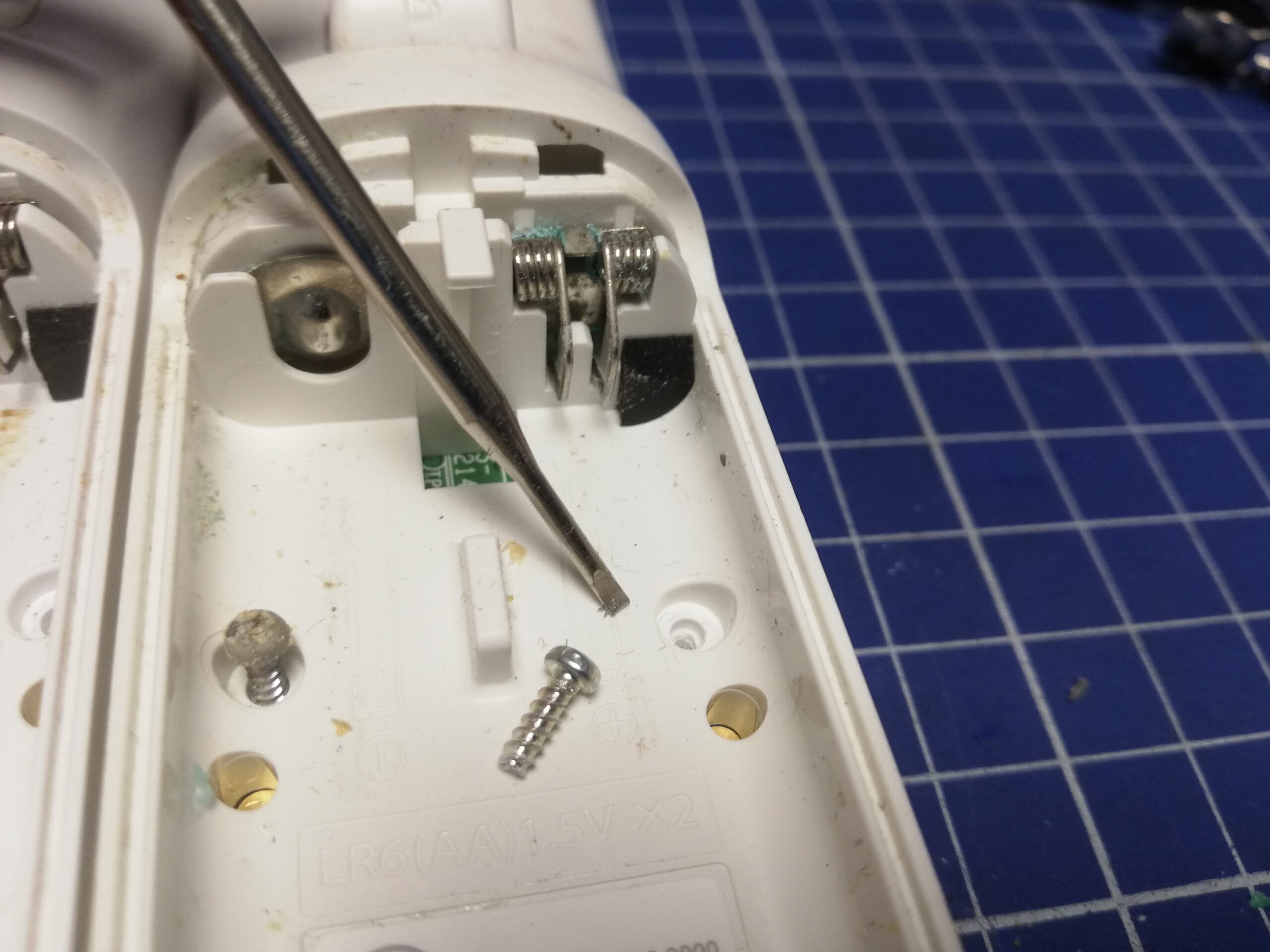

feat. flat head screwdriver hack 😉

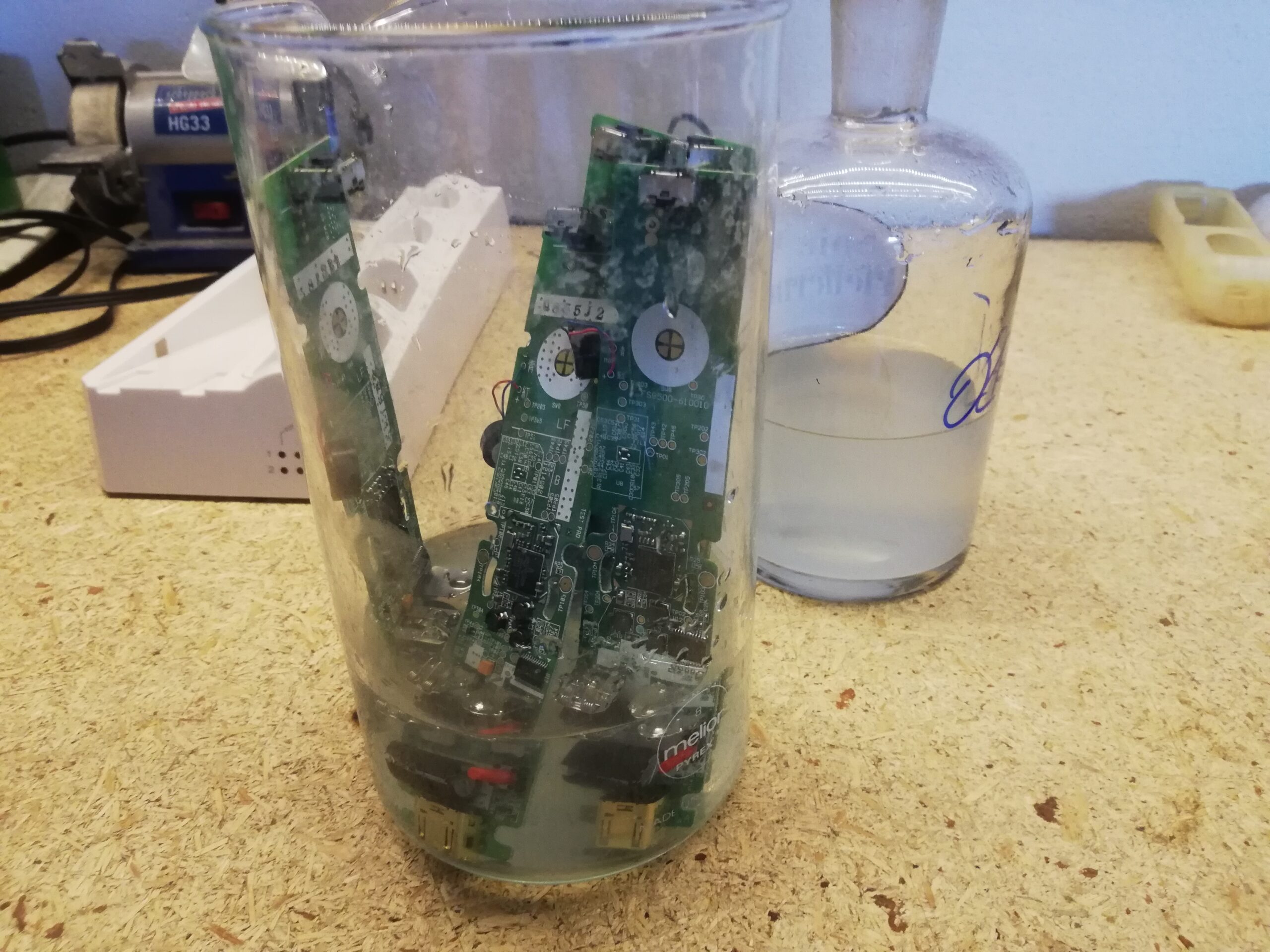

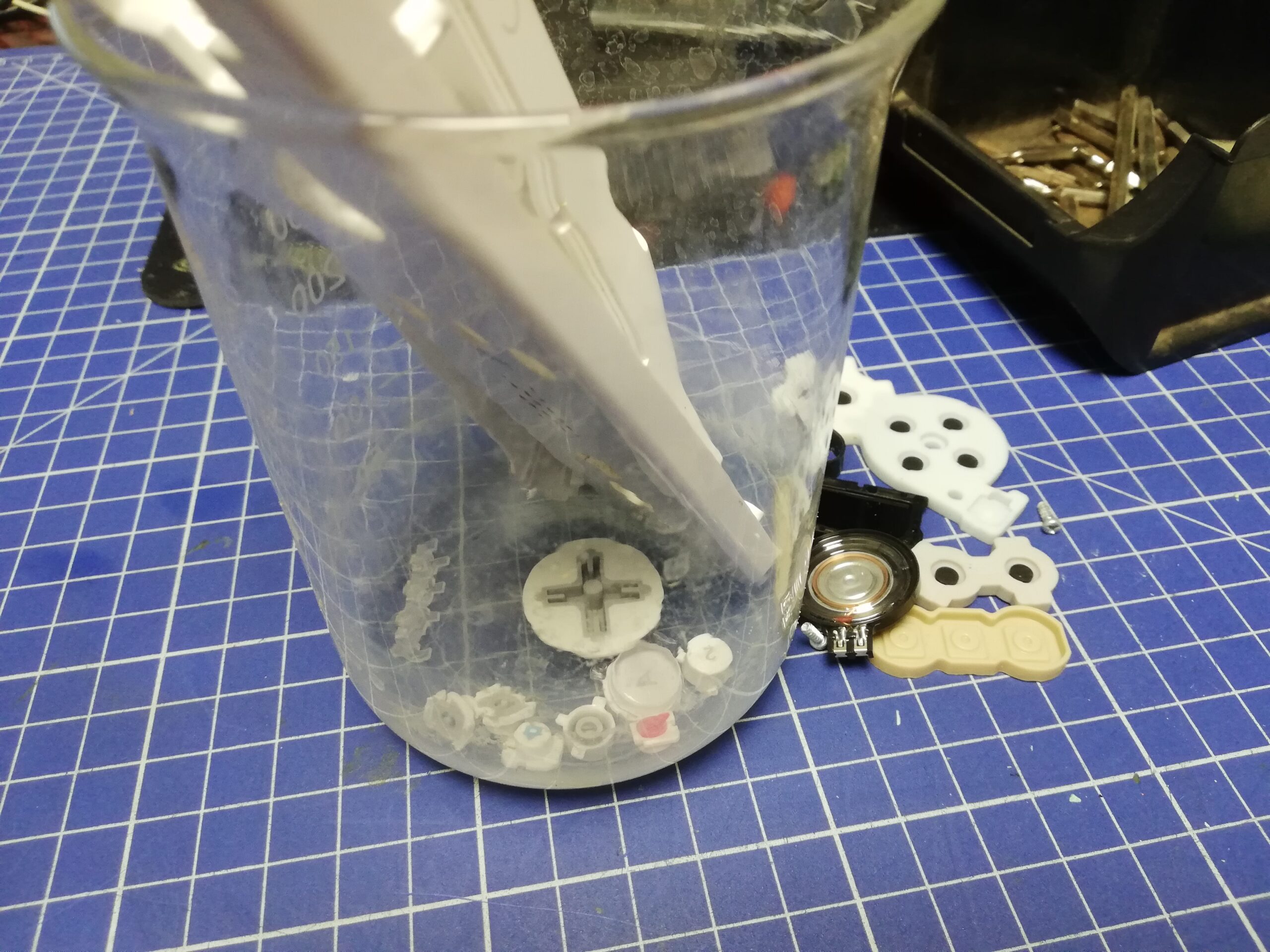

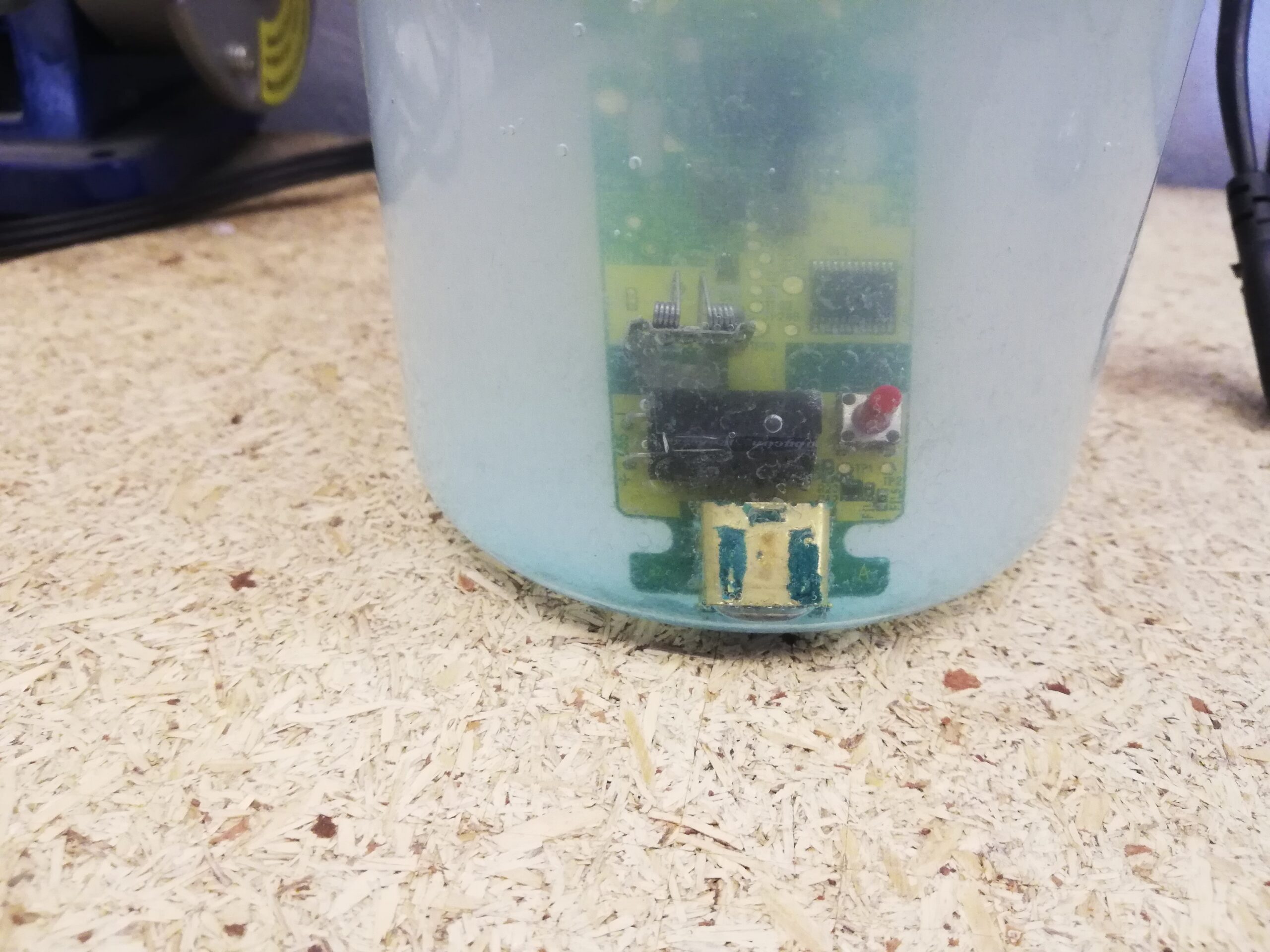

All parts covered with battery spillage were put into a beaker filled with 10% acetic acid.

Assembly

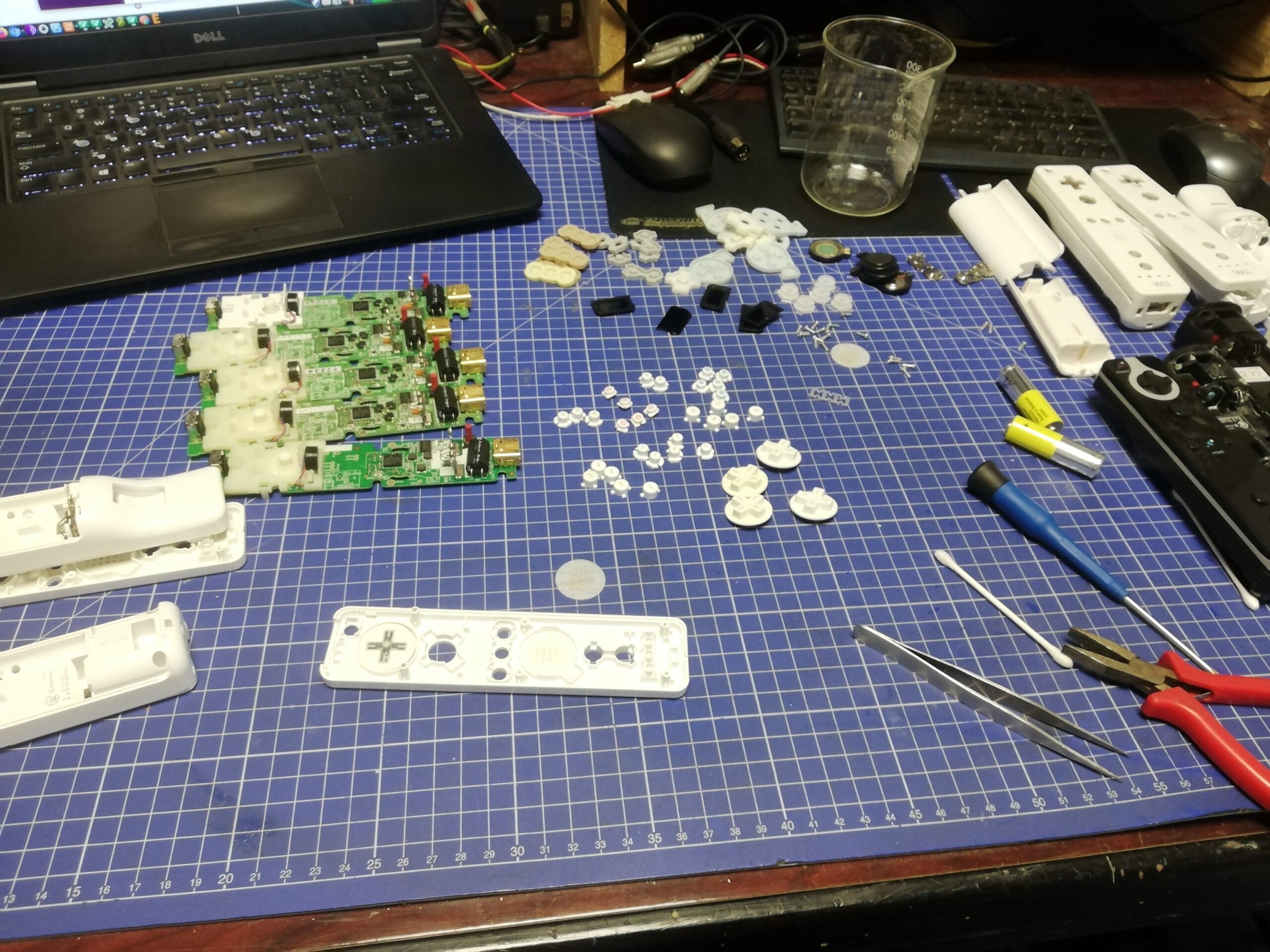

Once everything was dry enough, I’ve started to put it all together.

Finished

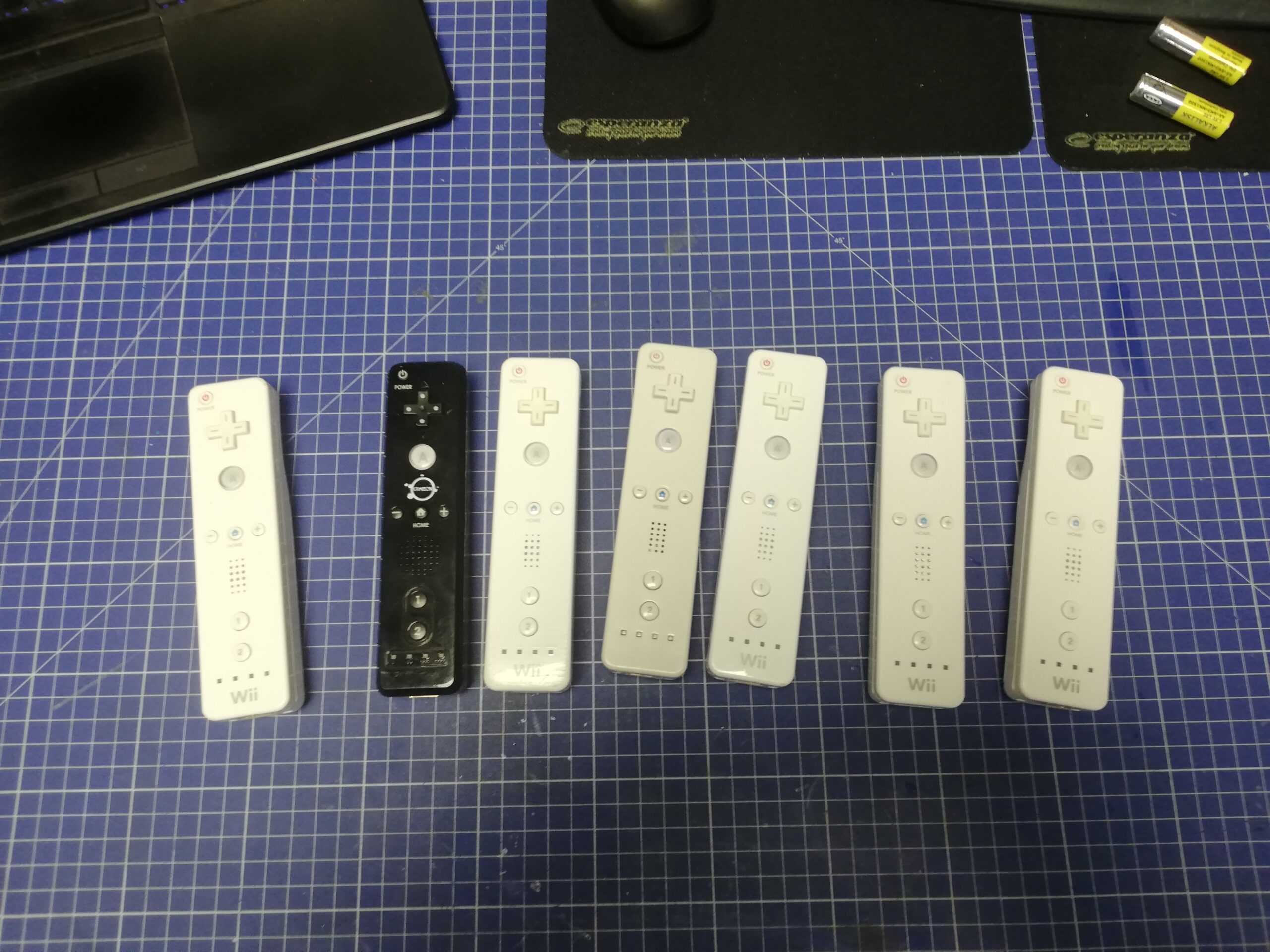

Out of all 9 controllers, I’ve managed to fix 7 units and brought them to a full working order.

Outro
